Display
| Sync-on-green (SOG) |
Y |
| Viewable size, horizontal |
283 mm |
| Viewable size, vertical |
212 mm |
| Viewable size diagonal |
354 mm |
| Video input impedance |
75 Ω |
| Display sRGB |
Y |
| Composite sync |
Y |
| Native aspect ratio |
16:9 |
Ports & interfaces
| Composite video in |
1 |
| AC (power) in |
Y |
| Component video (YPbPr/YCbCr) in |
3 |
| Composite video out |
1 |

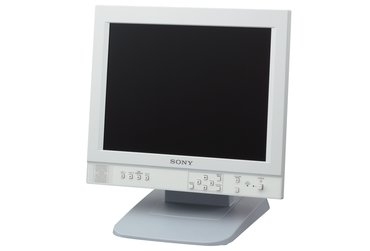

LMD-1410SC - LCD 640 x 480, 170/170, 4:3/16:9, Audio, Y/C, RGB-component, S-Video
High Picture Quality
Incorporating VGA-type LCD panels with 640 x 480 pixel resolution, this
monitor reproduce precise and detailed images from a variety of video signals, including composite and Y/C. In addition, by using wide aperture LCD panels, this monitor provide highbrightness and high-contrast images.
Wide Viewing Angle
The LCD panels used on this displays offer a wide viewing angle of 170
degrees, both vertically and horizontally, with minimal reduction in picture contrast. This allows images to be viewed from various positions and angles.
Input Versatility
Equipped with three selectable video inputs including analog composite, Y/C (S-Video), and RGB/component, this monitor can accept signals from a
number of cameras and recorders. Monaural Audio Monitoring This monitor are equipped with a speaker, which enables the user to monitor audio.
Convenient Installation
This monitor can be mounted in a 19-inch EIA standard rack using an
optional mounting bracket. Also, because they comply with VESA standards, this monitor can easily be mounted (100 x 100 mm pitch) on a wall or a ceiling. Slim and Light Because of its thin and lightweight
design, this monitor are ideal for installations where space is limited.
Protected Controls
The key-inhibit function helps prevent inadvertent operations from the control panel.
