Other features
| TV tuner type |
DVB-T |
| Wireless technology |
IEEE 802.11a/b/g |
| Networking features |
Gigabit Ethernet, Wireless LAN |
Processor
| Number of processors installed |
1 |
| Processor cache |
2 MB |
| Processor lithography |
65 nm |
| Thermal Design Power (TDP) |
65 W |
| Processor codename |
Conroe |
| Conflict Free processor |
N |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
7 |
| Processor operating modes |
64-bit |
| Stepping |
R0 |
| Processor cores |
2 |
| Processor frequency |
1.86 GHz |
| Tcase |
61.4 °C |
| ECC supported by processor |
N |
| Bus type |
FSB |
| Processor front side bus |
1066 MHz |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
167 M |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 x 37.5 mm |
| Processor ARK ID |
27248 |
| Processor code |
SLGW2 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Memory
| Memory layout (slots x size) |
2 x 0.5 GB |
| Maximum internal memory |
3 GB |
| Internal memory |
1 GB |
| Internal memory type |
DDR2-SDRAM |
Graphics
| Discrete graphics memory type |
GDDR3 |
| Discrete graphics adapter model |
NVIDIA GeForce 7600 GTL |
| Maximum graphics adapter memory |
0.256 GB |
Storage
| Hard drive speed |
7200 RPM |
| Compatible memory cards |
MMC, SD, xD |
| Total storage capacity |
250 GB |
| Hard drive interface |
Serial ATA |
Ports & interfaces
| Line-in |
Y |
| Line-out |
Y |
| Firewire (IEEE 1394) ports |
3 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
Additionally
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Processing die size |
111 mm² |

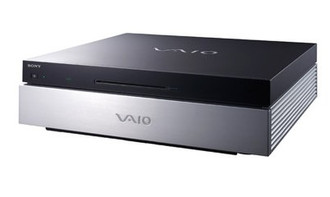

VGX-XL201
The ultimate HD-capable platform for your living room
- Intel Core 2 Duo Processor E6300.
- Genuine Windows® Media Center Edition 2005.
- 1024MB internal memory.
- 250GB hard drive capacity.
- NVIDIA GeForce 7600 GTL with GDDR3 SDRAM 256MB.
