Video
| Analog signal format system |
PAL, SECAM |
Performance
| Heat dissipation |
1365 BTU/h |
| Noise level |
28 dB |
Ports & interfaces
| PC Audio in |
Y |
| Progressive scan output |
Y |
| Composite video in |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| Audio (L,R) out |
1 |
| HDMI ports quantity |
1 |
Other features
| Networking features |
100BASE-TX/10BASE-T |
Lens system
| Focal length range (f-f) |
30.6 - 39.7 mm |
Projector
| Screen size compatibility |
40 - 600 " |
| Projector brightness |
4000 ANSI lumens |
| Horizontal resolution |
750 lines |
| Projection technology |
LCD |
| Projector native resolution |
XGA (1024x768) |
Lamps
| Lamp type |
UHP |
| Bulb power |
275 W |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| RS-232 port |
1 |
| Wireless technologies |
Wired |

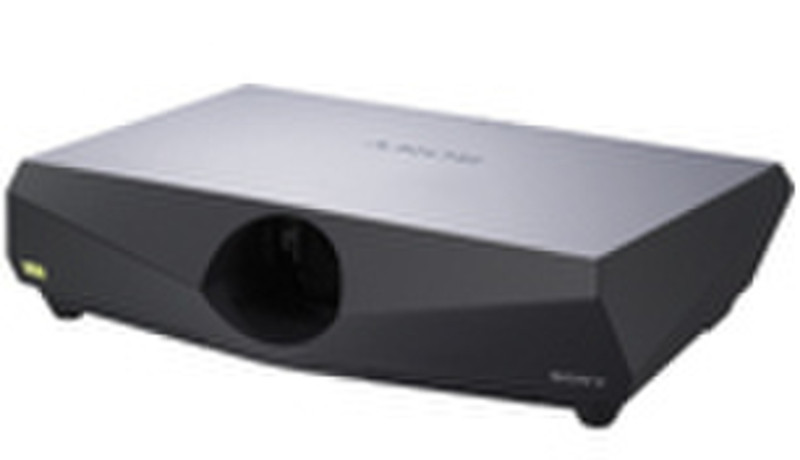

VPL-FX40 XGA 4000 Lumens Installation Projector
A wealth of features, state-of-the-art technology, ease of use and maintenance, ultra-modern design, and extremely bright output are just a few of the many accolades for this 3-LCD Installation projector.
Delivering an extremely bright 4,000 ANSI lumens at XGA Resolution and featuring a unique, new angular design body, the VPL-FX40 is an excellent projector for detailed high-impact multimedia presentations in almost any venue.
The VPL-FX40 Installation Projector is one of the first to incorporate our new BrightEra Inorganic alignment layer 0.79 LCD Panels manufactured by the Sony Panel Group.
BrightEra High Temperature Polysilicon (HTPS) LCD panels represent the very latest technology in precise liquid crystal alignment, offering increased reliability and higher picture quality. In comparison to conventional LCD panels, BrightEra technology greatly augments the panel’s resistance to ultraviolet light, which is a key factor in panel reliability. In addition, an increase to the aperture ratio from traditional panels enables the projectors to produce an incredibly bright image, while avoiding colour separation or the "rainbow effect" of the final image that can affect some other projection technologies.
The VPL-FX40 offers XGA resolution to project clear and crisp images even on large screens up to 600 inches (measured diagonally). With its outstanding functionality, simple operation and network capabilities, the VPL-FX40 projector provides you with the tools to perform seamless presentations.
The projector's ability to accept a broad array of signals, including those from sources equipped with the latest High-Definition Multimedia Interface (HDMI), gives you a wider choice of content so as to increase the dynamics of your presentations.
Also available: VPL-FX40L lens-less version offers a choice of 3 bayonet lenses to meet the requirements of your specific applications
