Ports & interfaces
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Frequency range |
2.4 - 5 GHz |
| Bluetooth |
Y |
| Audio port type |
I2S |
| USB ports quantity |
1 |
| USB version |
2.0 |
| Wi-Fi |
Y |
Features
| Supported programming language |
Python, C++, C |
| Standby power consumption |
13 mW |
| Standby power consumption (Wi-Fi) |
35 mW |
| Standby power consumption (Bluetooth) |
21.5 mW |
| USB On-The-Go support |
Y |
| Output current |
100 mA |
Memory
| Flash memory type |
NAND |
| Memory channels |
Dual |
| Memory clock speed |
800 MHz |
| Memory bus |
32 bit |
| Internal memory type |
LPDDR3 |
| Flash memory |
4096 MB |
| Maximum internal memory |
1 GB |
Processor
| CPU configuration (max) |
1 |
| Microcontroller frequency |
100 MHz |
| Microcontroller model |
Intel Quark |
| Processor lithography |
22 nm |
| Processor frequency |
500 MHz |
Weight & dimensions
| Board dimensions |
25 x 35.5 mm |
Additionally
| Ethernet LAN connection |
N |

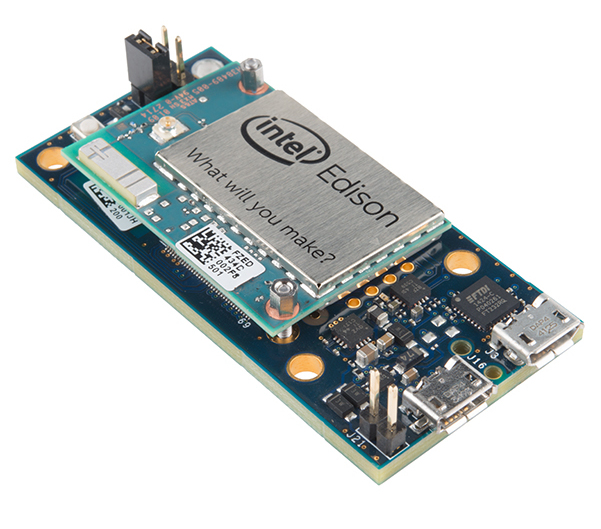

Intel Edison and Mini Breakout Kit
The Intel® Edison is an ultra small computing platform that will change the way you look at embedded electronics. Each Edison is packed with a huge amount of tech goodies into a tiny package while still providing the same robust strength of your go-to single board computer. Powered by the Intel® Atom™ SoC dual-core CPU and including an integrated WiFi, Bluetooth LE, and a 70-pin connector to attach a veritable slew of shield-like “Blocks” which can be stacked on top of each other. It’s no wonder how this little guy is lowering the barrier of entry on the world of electronics!
The Intel® Edison packs a robust set of features into its small size, delivering great performance, durability, and a broad spectrum of I/O and software support. Those versatile features help meet the needs of a makers, inventors, and beginners. This is a module with a high speed processor and WiFi and Bluetooth Radios on board. It’s low power and small footprint make it ideal for projects that need a lot of processing power, but don’t have the ability to be near a larger power source or have a large footprint.
The Intel® Edison Mini Breakout is designed to expose the native 1.8 V I/O of the Intel® Edison module. The board consists of power supply, battery recharger, USB OTG power switch, UART to USB bridge, USB OTG port, and I/O header.
