Performance
| Modulation |
DQPSK, OFDM, DBPSK, CCK |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Web-based management |
Y |
| Frequency band |
2.412 - 2.484 GHz |
| Receiver sensitivity |
802.11b -80 dBm@8%, 802.11g -68 dBm@10% |
Protocols
| Media access protocol |
CSMA/CA, ACK |
Other features
| Power LED |
Y |
| Transmit power |
13.5 - 17 dBmW |
| Outdoor range |
802.11b: 11Mbps Up to 300m\n802.11g: 54Mbps up to 50m |
Ports & interfaces
| Interface type |
1xRJ45 LAN |
Additionally
| Transfer rate (Mbps) |
54 Mbit/s |
| Indoors max range |
802.11b: 11Mbps Up to 100m\n802.11g: 54Mbps up to 30m |

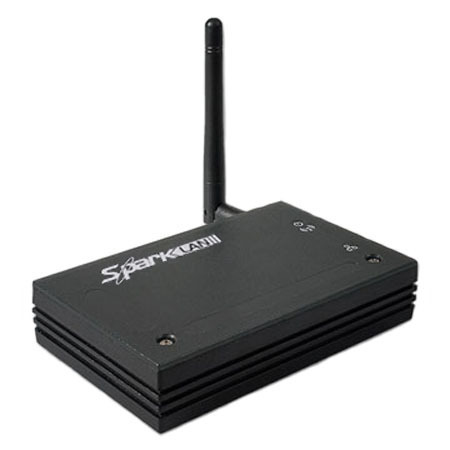

WLAN 802.11g 54Mbps Multi-mode AP
Extend Range with multi-mode feature AP
SparkLAN WAPR-141WLAN 802.11g multi-mode AP offers WDS (repeater & bridge mode), AP, and AP Client mode that can boost the wireless coverage range and give flexibility to set up extended Wi-Fi connection. WAPR-141 Access Point provides high speed data rate of up to 54Mbps while providing seamless interoperability with existing 802.11b gears. It’s suitable for SOHO, SMB, and home users, and any open space such as Café, McDonald’s, KFC, Burger King, Starbucks, library, station, subway, bookstore, hospital, airport, stadium, museum, and Shopping mall.
WAPR-141 AP provides highly security with 64/128WEP Encryption, WPA2, WPA, 802.1x, and MAC address filtering, and advanced administration control. It fully protects hacker and malicious attacks.
Easy to configure with web browser-based configuration utility
Enhance the user network security
Advanced Administration Setting
Web-based management
Up to 128-bits WEP, WPA, WPA2, 802.1x for secure connection
