Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11g |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g |
Security
| Firewall |
Y |
| MAC address filtering |
Y |
Other features
| xDSL connection |
Y |
| Data transfer rate |
54 Mbit/s |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

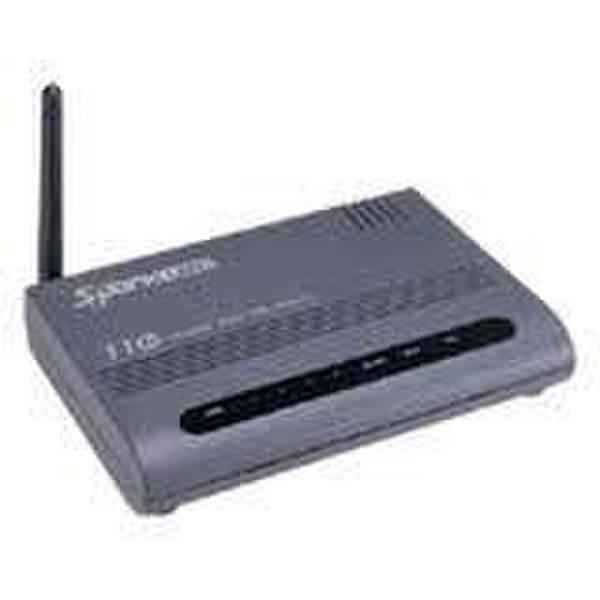

WLAN ADSL2+ Router, support TR-069
SparkLAN WMR-102 WLAN ADSL2+ router is your ideal all-in-one device. Capable of downstream data rate up to 24Mbps, the ADSL2+ Modem gives you a fast connection to the Internet. In the meantime, four 10/100 Base-T Ethernet don’t only provide wired broadband networking, but also the 802.11g WLAN AP offers wireless connectivity with up to 54Mbps. With the SparkLAN wireless ADSL2+ router, your computers are able to surfing the web, download music, file, video, play messengers.
Reliable Security
SparkLAN ADSL2+ router provides reliable security features such as WPA, WPA2, simple firewall, and VPN pass through. It is designed for both residential and business applications that require wireless and wired connectivity to an ADSL broadband network. The ADSL2+ Router supports up to 16 contiguous virtual connections allowing for multiple simultaneous Internet connections.
DSL Modem Features
Support TR-069 protocol (CPE WAN Management) ASDL 2+ downstream and upstream data rates up to 24Mbps and 1.3Mbps
WLAN AP Router Features
Combine Broadband internet-sharing router, 4-port switch, and AP function
WLAN IEEE802.11g up to 54 Mbps
Four 10/100Mbps RJ45 ports for broadband connection
Web-based management
