Ports & interfaces
| Host interface |
PCI |
| Internal |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Wi-Fi |
Y |
Networking
| Frequency band |
2.4 - 2.484 GHz |
| Chipset |
Ralink RT2860 (MAC/BBP), RT2820 (RF) |
Additionally
| Wireless technologies |
Wireless |
| Transfer rate (Mbps) |
300 Mbit/s |

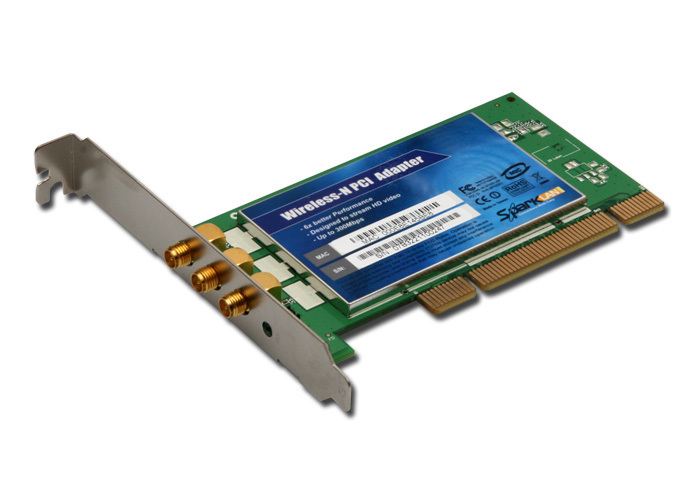

802.11n PCI Adapter
<b>Up to 300Mbps data rate, 6x better performance</b>
SparkLAN WPIR-501 PCI Adapter is IEEE 802.11n draft 2.0 compliant. It can deliver 6x better performance than normal 802.11g while fully backward compatible with conventional 802.11g gears. The MIMO technology (multi-in, multi-out) is successful in enhancing coverage range and throughput and save the cost to purchase additional devices to deploy household WLAN environment. The Wireless-N PCI adapter achieves incredible data rate of up to 300Mbps, which can allow you to enjoy high speed internet access for data, video, and voice at home and office. It is designed to stream bandwidth-sensitive applications, including high-definition video, VoIP phone calls, movies, music, pictures, and online games.
<b>Maximize your network security</b>
To maximize your network security and privacy, SparkLAN Wireless-N PCI adapter incorporates 64/128 bit WEP Encryption, WPA, WPA2, and QoS, which can to keep your wireless network secure.
