Processor
| Processor frequency |
600 MHz |
| Graphics adapter RAMDAC |
400 MHz |
| Graphics processor family |
NVIDIA |
| CUDA |
Y |
| Stream processors |
64 |
| Shader clock |
1500 MHz |
Performance
| DirectX version |
10 |
| OpenGL version |
2.1 |
| Shader model version |
4.0 |
| PhysX |
Y |
| TV tuner integrated |
Y |
| HDCP |
Y |
Memory
| Memory bus |
256 bit |
| Memory clock speed |
800 MHz |
| Discrete graphics adapter memory |
1 GB |
Other features
| HDMI |
N |
| Mac compatibility |
N |
Ports & interfaces
| Interface type |
PCI Express 2.0 |
| DVI-I ports quantity |
2 |
Additionally
| Graphics controller |
GeForce 9600 GT |
| Dual-link DVI |
Y |

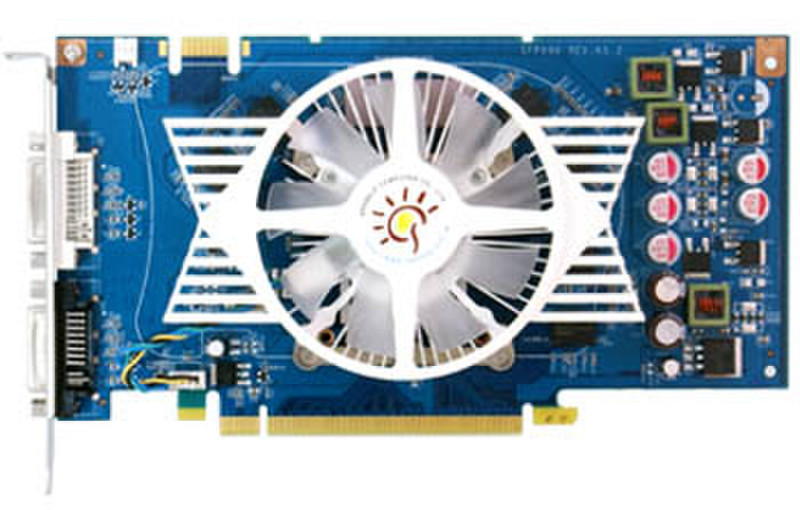

GeForce 9600GT, 1024MB DDR2, 256-bit, PCI-E, DirectX 10, 2560 x 1600
NVIDIA® unified architecture
Fully unified shader core dynamically allocates processing power to geometry, vertex, physics, or pixel shading operations, delivering up to 2x the gaming performance of prior generation GPUs.
Full Microsoft® DirectX® 10 support
DirectX 10 GPU with full Shader Model 4.0 support delivers unparalleled levels of graphics realism and film-quality effects.
NVIDIA® SLI™ technology
Delivers up to 2x the performance of a single GPU configuration for unparalleled gaming experiences by allowing two graphics cards to run in parallel. The must-have feature for performance PCI Express® graphics, SLI technology dramatically scales performance on today’s hottest games.
PCI Express 2.0 support
Designed to run perfectly with the new PCI Express 2.0 bus architecture, offering a future-proofing bridge to tomorrow’s most bandwidth-hungry games and 3D applications by maximizing the 5 GT/s PCI Express 2.0 bandwidth (twice that of first generation PCI Express).PCI Express 2.0 products are fully backwards compatible with existing PCI Express motherboards for the broadest support.
GigaThread™ Technology
Massively multi-threaded architecture supports thousands of independent, simultaneous threads, providing extreme processing efficiency in advanced, next generation shader programs.
NVIDIA® Lumenex™ Engine
Delivers stunning image quality and floating point accuracy at ultra-fast frame rates:
16x Anti-aliasing: Lightning fast, high-quality anti-aliasing at up to 16x sample rates obliterates jagged edges 128-bit floating point High Dynamic-Range(HDR):Twice the precision of prior generations for incredibly realistic lighting effects-now with support for anti-aliasing.
NVIDIA® Quantum Effects™ Technology
Advanced shader processors architected for physics computation enable a new level of physics to be simulated and rendered on the GPU –all white freeing the CPU to run game engine and AI.
NVIDIA® ForceWare® Unified Driver Architecture (UDA)
Delivers a proven record of compatibility reliability and stability with the widest range of games and applications. ForceWare provides the best out-of-box experience and delivers continuous performance and feature updates over the life of NVIDIA GeForce® GPUs.
OpenGL® 2.1 optimizations and support
Ensures top-notch compatibility and performance for OpenGL applications.
Dual 400MHz RAMDACs
Blazing-fast RAMDACs support dual QXGA displays with ultra-high, ergonomic refresh rates –up to 2048x1536@85Hz.
Dual Dual-Link DVI Support
Able to drive industry’s largest and highest resolution flat-panel displays up to 2560x1600 and with support for High-bandwidth Digital Content Protection(HDCP).
NVIDIA PureVideo HD technology
The combination of high-definition video decode acceleration and post-processing that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for movies and video.
Discrete, Programmable Video Processor
NVIDIA PureVideo is a discrete programmable processing core in NVIDIA GPUs that provides superb picture quality and ultra-smooth movies with 100% offload of H.264 video decoding from the CPU and significantly reduced power consumption.
