DVI, HDMI 1.3, 5V DC, RS-232

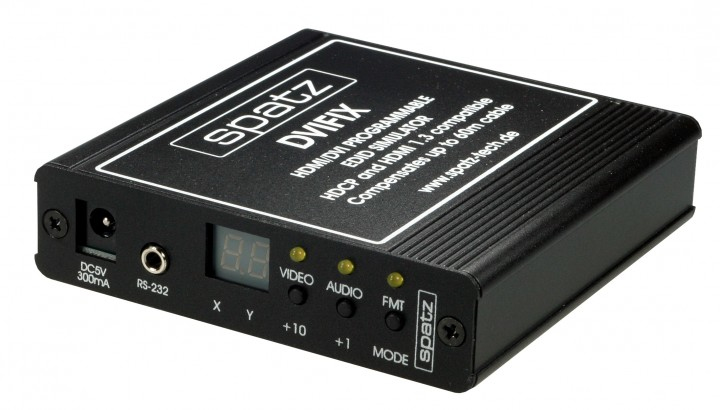

The SPATZ DVIFIX is a HDMI/DVI EDID simulator that provides 11 customizable display EDID's and emulates the selected EDID to the attached PC computer or HD source. The DVIFIX manipulates the HDMI/DVI source ( PC computer,Laptop, HDDVD, BlueRay) emulating a HDMI/DVI display (LCD monitor or projector) for continuous video output, even if the attached display is disconnected or powered down.
The EDID presets allow the user to set up any HDMI/DVI output resolution, regardless of the used projector or monitor.
The unit has push buttons and a numeric display for selection of the stored EDIDs.
The RS-232 port allows remote preset selection, Firmware updates and can output the current configuration to a terminal programm.
With an optional PC attached you can read the adjustments in real text on your computer screen.
The DVIFIX has a built in 40 db compensation for cable runs up to 60m with UXGA or 1080p resolutions.
- DVI connectors
- HDMI 1.3 Input HDCP
- HDMI 1.3 Output HDCP
- Built in EQ for up to 60m cable
- DC 2mm adaptor 5V DC 100 mA
- Dimensions 70 x 30 x 105 mm
- supports all HDMI functions inlcuding AUDIO EDID
- full HDCP support
- will force HDDVD, BlueRay sources to 1080@60p or 24p
- Fully HDMI compatible including Audio
- Can learn HDMI EDID from any display
- Preset with 3D EDID
- "Pure" DVI EDID for MAC
- RS-232 control and firmware update port
- Outputs real text over RS-232 while adjusting
