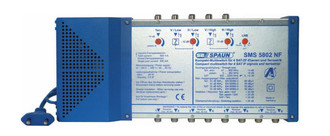

Spaun SMS 5602 NF video switch

Compact Multiswitch f/ 4 SAT-IF Signals w/ Active Terrestrial <b>Premium-Class</b>

With passive and active terrestrial for 4, 6, 8, 12 or 16 subscribers.

<b>Features:</b>

Integrated energy saving switching power supply
Mains supply: U~: 100 ... 240 V / 50 ... 60 Hz

Standby function

<b>Terrestrial:</b>

- Terrestrial amplifier is made for CATV and using push-pull technology
- With the integrated variable attenuator active or passive distribution can be selected. In active mode too high input levels can be decreased by 0 ... 10 dB
- Turned to max. attenuation the amplifier is bypassed and turned off. The passive distribution is return path compatible (5 ... 862 MHz)

<b>SAT-IF:</b>

- A special amplifier / filter design improves the inter modulation properties of the multiswitch considerably
- The high selective input filter guarantees that interference products of the LNBs cannot drive the amplifiers into saturation
- An additional output filter ensures that intermodulation products and noise effects do not degrade the terrestrial signal
- Steep pre-filter to suppress outband distortions from LNBs
- The multiswitches support a standby mode. The SAT-IF amplifiers and the LNB remote voltage are
- only active when at least one receiver sends a voltage to its multiswitch outlet
- Amplifiers precompensating > 6 dB slope
- Synchronous level adjuster for low- and high band to adjust different input levels
