Performance
| Suitable for |
Processor |
| Thermal Design Power (TDP) |
115 W |
| Maximum airflow |
35.7 cfm |
| Thermal resistance |
0.336 °C/W |
| Maximum air pressure |
3.04 mmH2O |
| Noise level (high speed) |
29 dB |
| Rotational speed (max) |
2200 RPM |
| Type |
Cooler |
| Number of fans |
1 fan(s) |
| Fan diameter |
80 mm |
| Supported processor sockets |
LGA 1366 (Socket B) |
Power
| Rated current |
0.18 A |
| Voltage |
12 V |
Weight & dimensions
| Heatsink dimensions (W x D x H) |
80 x 80 x 25 mm |
Sigor - 80mm, socket 775, 30000h, 29 dBA, 12V, aluminum.

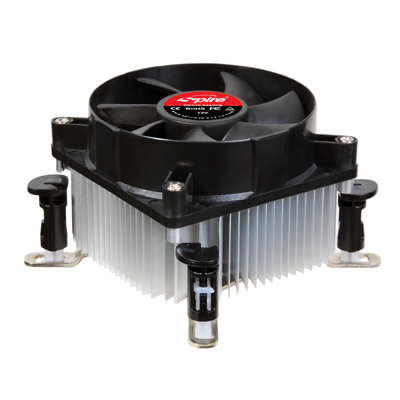

The Spire Sigor CPU Cooler is made out of a quality engineered designed aluminum omni-directional heat-sink. Ensuring airflow is directed to the hot components on the mainboard, topped with a signature 80x25mm dc fan. The Sigor is a socket 1156 Intel version, silent and capable to cool the Core i3 and Core i5 micro-processors, assembled onto the 1156 sockets. Installation is made easy with the Intel approved push-pins, no tools are required. Ready to cool up to the hot 95W micro-processors the Sigor is the perfect solution for System Integrators who are determined to build a cost effective 1156 based PC System.
Main Features:
- Aluminum omni-directional, single-ped finned heat-sink
- Large base for maximizing contact dissipation area
- Silent 80x25mm DC fan design
- Secure & Tool-free Intel push-pin installation
- Total CPU cooler height only 60mm
- Stars-350 Thermal compound pre-applied
Compatibility:
The Sigor is compatible with ATX and MICRO platforms, socket 1156 for the Intel Core i3 and Core i5 micro-processors.
