Other features
Supported data transfer rates |
3000, 320 Mbps |
Host interface |
SCSI |
Storage
Number of storage drives supported |
5 |
Hot-swap |
Y |
Additionally
Ethernet LAN (RJ-45) ports quantity |
1 |

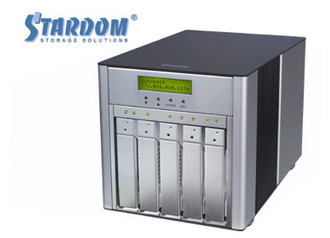

Stardom Raid Subsystem, SCSI, 8.89 cm (3.5 ") , SATA

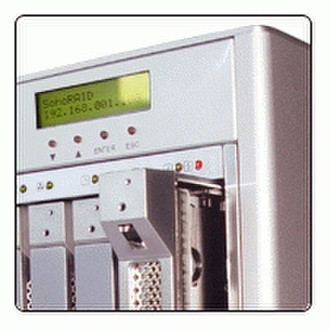

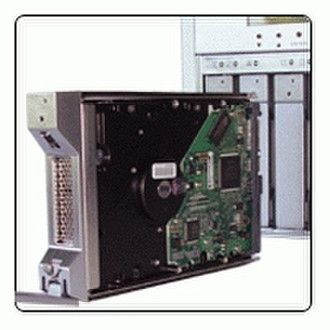

The SR6600 is an external RAID Subsystem (RAID 0,1,3,5) for 5 SATA 1,5,/3,0 Gb/s HDD with an integrated network interface for status control and management. The Subsystem provides 2 SCSI U320 host interfaces. The configuration of the system could be done by the integrated LCD Display and function keys or the RS232 port via VT100 terminal emulation or by a standard web browser using the Ethernet interface. The IP-address could optionally be adjusted through Display or VT 100 manually or via DHCP. The system can send event or error massages via SNMP Trap or email. The concerning event level could be attuned. This massaging works independent of the host system’s status using the integrated Ethernet interface. Errors like overheating, hard disk malfunctions and fan failures are additionally signalled by an acoustic alarm, the LCD panel and the status LEDs. The HDD cage provides compact space for 5 SATA HDDs which are effectively cooled by 2 powerful 6 cm fans. The system and HDD temperatures and the fan speed could be monitored online via the mentioned communication channels. The fan speed is automatically controlled by the system temperature, which ensures a silent operation under normal conditions. The SATA HDDs could be freely bundled in up to two parallel RAID Sets with RAID level 0,1,3 or 5. A RAID set could be extended online, where just the size is expended and no additional volume is generated. Singular HDDs could be directly passed through to the SCSI bus (JBOD) or handled as reserve disc (Hot Spare). In case of a controller failure the HDDs could be read in another SR6600, the data content stays accessible. The HDD carriers have a security push opening mechanism against unintended pull off and will be also sold separately. The Subsystem is equipped with a 200 W power supply with a separate fan. The Subsystem is also available as an internal version named SR 2900.
