Technical details
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Serial ports quantity |
1 |
| Baud rate |
230.4 Kbit/s |
| Operating frequency |
2400 MHz |
| Auto MDI/MDI-X |
Y |
Indication
| Link/Act LED |
Y |
| Power LED |
Y |
Packaging content
| Wall mounting kit |
Y |
| User guide |
Y |
Antenna
| Antenna connector type |
RP-SMA |
| Antenna gain level (max) |
2 dBi |
Protocols
| Supported network protocols |
CSMA/CA ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, SSL, PPPoE, DDNS |
Design
| Electrostatic Discharge (ESD) protection (contact) |
4 kV |
| Electrostatic Discharge (ESD) protection (air) |
8 kV |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

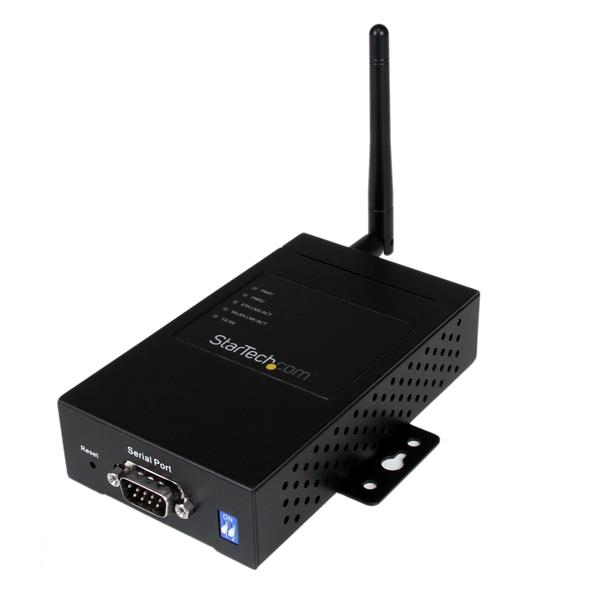

StarTech.com 1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Wireless Device Server with Redundant Power - Serial Device Server
Connect to, configure and remotely manage an RS232 or RS422/485 serial device over a WiFi/wired connection<br/><br/>The NETRS232485W Wireless Serial over IP Device Server lets you remotely access and manage an industrial serial device over a WiFi or wired network, with the added benefit of redundant power inputs to prevent downtime in the event of a power surge or failure.<br/><br/>To eliminate the hassle of laying additional Ethernet cable, this wireless device server lets you connect your RS232/422/485 serial device in a location where a wired network connection is unavailable, with support for 802.11 B/G WiFi connections and a 10/100Mbps wired network port for added flexibility.<br/><br/>Ideal for industrial environments, the serial to Ethernet device server accepts wide-range 12-48V DC power input via a terminal block or an optional DC jack, enabling you to add redundant power with a secondary adapter (e.g. IM12D1500P" text="12V DC 1.5A Power Adapter SKU: IM12D1500P - sold separately).<br/><br/>This device server supports baud rates up to 230.4Kbps which provides a smooth connection to your serial devices. The server also offers support for HTTPS, SSH and SSL to ensure secure communication, while integrating remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, TCP and UDP protocols. You can customize the serial device server to suit your application with versatile browser-based or virtual com port software configuration.<br/><br/>Ensuring performance in harsh environments, this serial device server offers 8KV air, and 4KV contact ESD (Electrostatic Discharge) protection and features a rugged, IP-30 case design that is both DIN rail and wall-mountable.<br/><br/>Backed by a 3-year StarTech.com warranty and free lifetime technical support.<br/><br/>The StarTech.com Advantage<br/><br/>- Control serial devices over IP without a wired network connection with wireless B/G connectivity<br/>- Maintain serial connectivity during disruptions with redundant power inputs<br/>- Suitable for harsh environments with ESD protection and a rugged, metal enclosure
