Technical details
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Baud rate |
460.8 Kbit/s |
| Stop bits |
2, 1.5, 1 |
| Flow control support |
Y |
| Serial ports quantity |
1 |
Power
| Compatible power plug types |
US, UK, EU, AU |
| Power consumption |
360 mA |
| Input voltage |
100 - 240 V |
Protocols
| Supported network protocols |
DHCP, TCP/IP, UDP, HTTP, ICMP, ARP, Telnet |
Indication
| Connectivity LEDs |
Tx / Rx |
| Link/Act LED |
Y |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

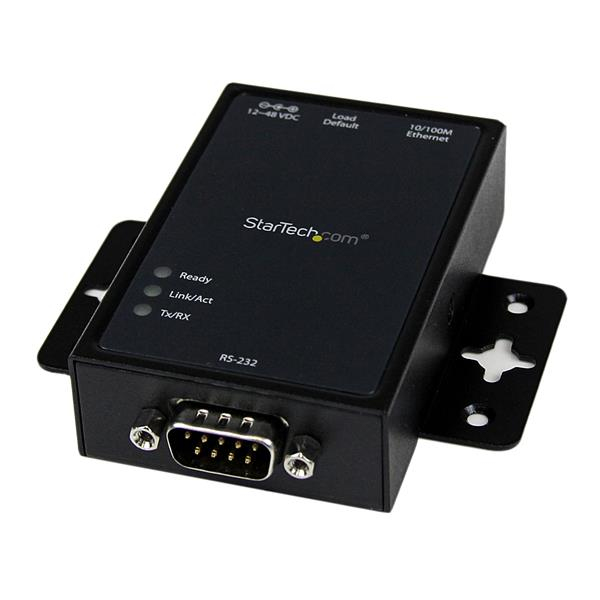

StarTech.com 1 Port RS232 Serial to IP Ethernet Converter / Device Server - Aluminum Serial over IP Device Server - Serial to IP Converter
This 1-port serial device server is an effective serial-over-IP solution that lets you connect to, configure, and remotely manage an RS232 serial device over a LAN (Local Area Network).
<b>Access your serial devices remotely</b>
The versatile device server is designed to function seamlessly with your integrated serial ports, while offering baud rates faster than many other device servers (up to 460.8Kbps).The device server provides the tools you need to communicate with remote RS-232 devices as if they were directly connected.
<b>Flexible setup and operation</b>
It offers versatile browser-based or Virtual COM port software configuration for customizing the device to suit your application. Plus, the software communicates directly with the device server, so it can be used in Virtual Machine (VM) environments if you have multiple VMs sharing the same set of hardware.
The device server also offers remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP and UDP protocols.
<b>Aluminum housing provides durability you can count on</b>
With a sturdy aluminum housing and DIN rail or surface mounting brackets, the serial device server provides a durable remote serial interface for industrial automation, security, Point of Sale and many other applications.
The NETRS2321P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
<b>The StarTech.com Advantage</b>
- Access a serial device from anywhere with an IP-based connection
- Mount on DIN-rails or on a wall with the attached mounting brackets
- Suitable for harsh environments with a rugged, aluminum enclosure
