Technical details
| Parity bit |
Space, Odd, N, Mark, Even |
| Serial ports quantity |
1 |
| Stop bits |
2, 1.5, 1 |
| Baud rate |
230.4 Kbit/s |
| Remote management |
Y |
| Auto MDI/MDI-X |
Y |
| Surge protection |
15 kV |
Indication
| Link/Act LED |
Y |
| Power LED |
Y |
Power
| Compatible power plug types |
US, UK, EU, AU |
| Input voltage |
100 - 240 V |
Protocols
| Supported network protocols |
VCOM, TCP Server, TCP Client, UDP, HTTP,DHCP, ICMP(PING), Static IP, ARP |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

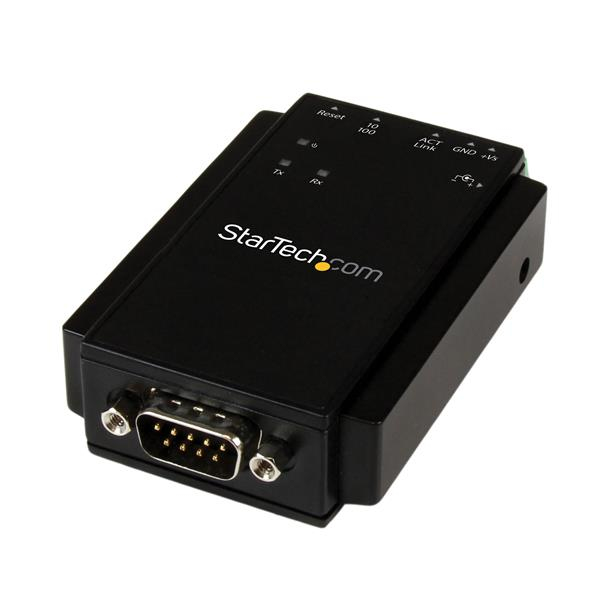

StarTech.com 1 Port RS-232 Serial to IP Ethernet Device Server - DIN Rail Mountable - Serial Device Server - Serial Over IP Device Server
This 1-Port Serial Device Server lets you remotely access and manage an RS232 serial device over a local or wide area network (LAN/WAN), for a simple and cost-effective serial-over-IP control solution.
<b>Flexible power and mounting options</b>
For installation flexibility across a variety of environments, you can power the device server using the provided 12V DC power adapter, or using the integrated 10~30V DC terminal block.
Plus, the device server is DIN rail mountable for out-of-the-way installations.
<b>Protects your investment</b>
To help ensure reliable performance and prevent possible damage, the serial device server offers 15KV ESD (Electrostatic Discharge) protection, so you can rest assured that the device server won’t become damaged due to externally generated ESD.
<b>Customizable and wide compatibility</b>
This highly-customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP Server/Client, UDP, HTTP, DHCP, ICMP(PING), Static IP, and ARP protocols
The NETRS232 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
