Hard drive
| Storage drive sizes supported |
2.5, 3.5 " |
| Number of storage drives supported |
4 |
| Storage drive interface |
Serial ATA, Serial ATA II, Serial ATA III |
| Maximum storage capacity |
16 TB |
| Storage media type |
HDD, SSD |
Packaging content
| Cables included |
USB, eSATA |
| Manual |
Y |
| Included power plug types |
EU, NA, UK |
Technical details
| Maximum data transfer rate |
5 Gbit/s |
| UASP support |
N |
| Hot-swap |
Y |
| Plug and Play |
Y |
| Material |
Plastic |
| Chipset |
Jmicron - JM321+JM539 |
Operational conditions
| Operating relative humidity (H-H) |
8 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
Ports & interfaces
| Host interface |
USB 3.0 (3.1 Gen 1) Type-B |
| eSATA ports quantity |
1 |
| DC-in jack |
Y |
Power
| Output voltage |
12 V |
| AC input voltage |
110-240 V |
| Input current |
2.5 A |
| Output current |
6.5 A |
Weight & dimensions
| Depth |
290.5 mm |
| Weight |
966 g |
| Width |
172 mm |
| Height |
172.7 mm |
Certificates
| RoHS compliance |
Y |
| Certification |
CE, UL |
Indication
| LED indicators |
Activity, Power |
Cooling
| Fan diameter |
60 mm |
| Number of fans |
2 fan(s) |
Packaging data
| Package weight |
1600 g |
| Package dimensions (WxDxH) |
168 x 340 x 213 mm |
Additionally
| Colour of product |
Black |
| AC adapter bundled |
Y |
| Operating temperature range (T-T) |
5 - 80 °C |

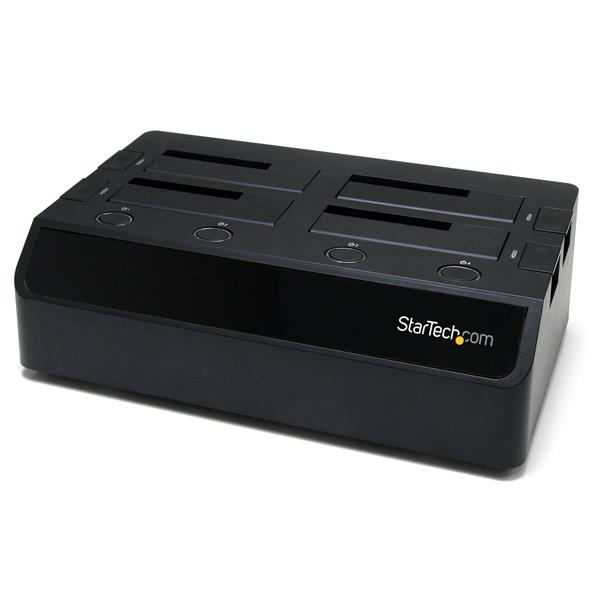

StarTech.com 4 Bay eSATA USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD
The SATDOCK4U3E eSATA and USB 3.0 4-Bay SATA Hard Drive Docking Station is a convenient, time-saving storage solution for 2.5-inch and 3.5-inch SATA hard drives (HDD) and solid state drives (SSD) allowing for up to 4 SATA drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) to be conveniently and quickly connected to a host computer through a single connection.
The hard drive docking station features SuperSpeed USB 3.0 connectivity (also compatible with USB 2.0) with support for data transfer rates up to 5Gbps (10x faster than USB 2.0) or eSATA with Port Multiplier connectivity (up to 3Gbps), to provide fast connectivity to all 4 hard drives simultaneously.
The eSATA/USB 3.0 SATA hard drive docking station also features dual built-in, variable-speed 60mm fans that can be manually adjusted to keep each drive running cool, depending on the drives and operating environment, or turned off completely. Double the value of this hard drive docking station, using a SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in a SATA hard drive dock slot.
The StarTech.com Advantage
- Access up to 4 SATA drives simultaneously over a single USB 2.0/3.0 or eSATA connection
- Independent power buttons and eject mechanism for each SATA hard drive allows for quick and easy hot-swapping
- Dual, variable speed fans allows you to adjust the amount of cooling for any kind of environment or drives
