Data transmission
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100 Mbps |
| Maximum data transfer rate |
0.1 Gbit/s |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Power
| Number of power supply units |
1 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| DC-in jack |
Y |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Other features
| Power LED |
Y |
| Networking features |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Power supply type |
9V DC, 0.6A |
Protocols
| Supported network protocols |
CSMA/CD |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

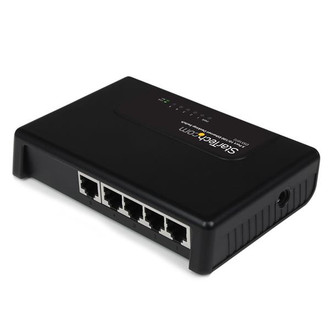

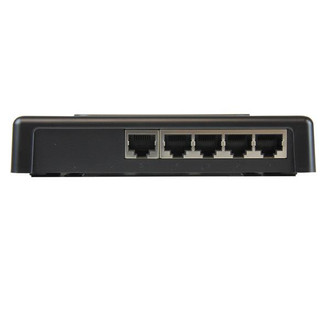

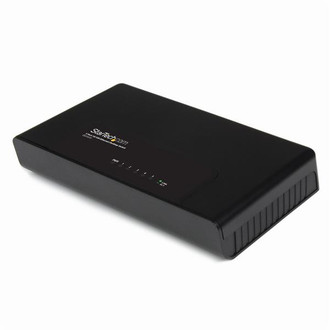

StarTech.com 5 Port Fast Ethernet Switch - 10/100 Desktop Wall Mount Network Switch - 5-Port 10/100 Desktop Switch
Connect and network up to 5 Ethernet devices through a single 10/100 Mbps desktop switch
The DS51072 5-Port Ethernet Network Switch enables up to 5 users to share files and devices (e.g. printers, scanners) over a LAN connection, by expanding an existing network's capacity with additional ports.
Compatible with both 10Base-T (10 Mbps) and 100Base-TX (100Mbps) networks, this Fast Ethernet switch can automatically detect the type of network (auto- negotiation) as well as the type of cable (auto MDIX) and configure itself, making for an easy to install, Plug-and-Play networking solution.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- This 5-port Ethernet switch automatically detects and configures for network speed, duplex and cable type on each port, for a Plug-and-Play installation and setup
- The switch features easily-accessed top-mounted LED indicators, and can be wall-mounted or placed on a desktop
- The network switch uses a simple, fanless design for quiet and energy-efficient operation
