Data transmission
| MAC address table |
2048 entries |
| Store-and-forward |
Y |
| Maximum data transfer rate |
0.1 Gbit/s |
Other features
| Connectivity LEDs |
Y |
| Wi-Fi |
N |
| Networking features |
10BaseT/100BaseTX |
| Power supply type |
DC |
Networking
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
Power
| Input voltage |
12 V |
| Input current |
0.2 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

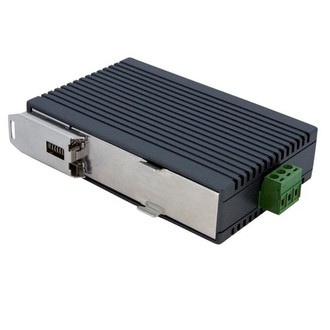

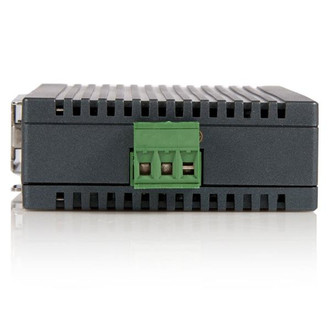

5 Port Unmanaged Industrial Ethernet Switch - DIN-Rail Mountable
Expand your network connectivity with this rugged din rail mountable industrial Ethernet switch
The IES5100 5 Port Unmanaged Industrial Ethernet Switch (DIN-Rail Mountable) offers 5 10/100 Ethernet switching ports and is designed to operate in harsh environments, making it an ideal solution for factory floors, warehouses, and outdoor locations without temperature control.
This versatile switch features 10/100Mbps transfer speeds, full/half-duplex auto-negotiation and auto MDI/MDIX operation allowing you to connect your network devices quickly and easily with little to no configuration required.
The Ethernet switch can be DIN rail mounted and features compact, hardened construction that can be installed in any environment, able to operate within extended temperature ranges from -10°C to 60°C.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Unmanaged Ethernet switch with integrated port auto-negotiation features make it easy to use and saves configuration time
- Din-Rail Mountable for simple installation into equipment racks and cabinets
- Rugged construction and extended operating temperature ranges make the device ideal for harsh workplace and industrial conditions
