Data transmission
| Switching capacity |
2 Gbit/s |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet (PoE) |
Y |
Networking
| Full duplex |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
6 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |

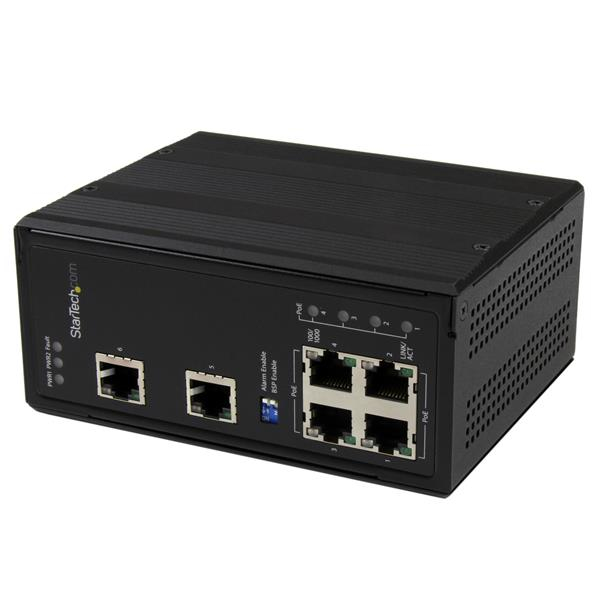

StarTech.com 6 Port Unmanaged Industrial Gigabit Ethernet Switch w/ 4 PoE+ Ports & Voltage Regulation - DIN Rail/Wall Mountable PoE Switch
Connect Gigabit Ethernet data and power to 4 PoE-enabled devices, with 2 additional GbE ports and redundant power input
The IES61002POE 6-Port Industrial PoE+ switch lets you connect Gigabit Ethernet data and power to four PoE-enabled devices, with two additional GbE ports.
Fully compliant with IEEE 802.3at / 802.3af, the industrial Ethernet switch offers up to 30 Watts output per port, through the four PoE+ / PSE ports, while all six shielded RJ45 ports support auto-negotiation of speed and duplex for 10/100/1000Mbps Ethernet networks.

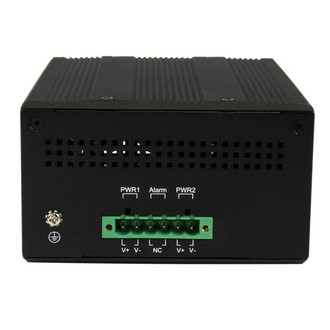

Providing seamless power failover in the event of power dips or failures, the switch features redundant 20-57V DC (nominal 24/48V DC) terminal block power inputs. When used with multiple power sources, the switch supports alarm relay contacts, which can be wired to your existing alarm circuit to give you instant notice when a power disruption occurs.
The switch also features an internal DC-DC converter with voltage regulation, which provides the PoE injector with high voltage output from a low voltage input (
To ensure dependable performance in harsh environments, this power over Ethernet switch features an extended operating temperature range (-40°C to 75°C), a rugged IP-30 rated case design and includes both DIN-Rail and wall-mount brackets for flexible installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Power devices through PoE, where electrical outlets are not available
- Operate under harsh industrial conditions with an extended temperature range and IP-30 rated enclosure
- Maintain device operation during power disruptions with redundant power inputs
