Data transmission
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100 Mbps |
| Maximum data transfer rate |
0.1 Gbit/s |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Power
| Number of power supply units |
1 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| DC-in jack |
Y |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Additionally
| Wireless technologies |
Wired |
8 port, IEEE 802.3af, IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3x, PoE

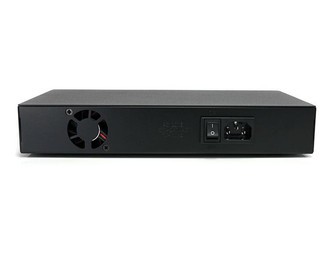

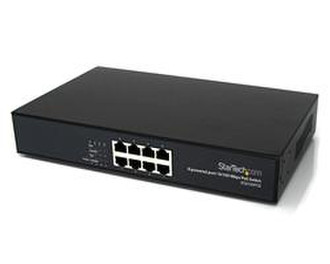

The IES8100POEGB 8-port 10/100 Mbps Power over Ethernet (PoE) Switch enables you to supply both power and data to up to 8 PoE-capable devices.
The switch complies with 802.3af standards and supplies up to 15.4 W per port - plenty of power for your PoE devices. A flexible solution giving you the freedom to place your equipment in locations where power outlets are not available, this compact PoE Switch features 8 auto-detecting full/half-duplex ports with automatic crossover detection (MDI/MDI-X). A sturdy metal enclosure provides durability in harsh industrial environments.
