Hard drive
| Storage drive sizes supported |
2.5, 3.5 " |
| Number of storage drives supported |
2 |
| Storage drive interface |
Serial ATA |
| Maximum storage capacity |
4 TB |
| Storage media type |
HDD |
Technical details
| Maximum data transfer rate |
5 Gbit/s |
| Package length |
7.28 mm |
| RAID support |
N |
| Material |
Plastic |
| Chipset |
JMicron - JMS551 |
| Package width |
120 mm |
| Package height |
210 mm |
Software
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Y |
| Windows operating systems supported |
Y |
Other features
| Standard interfaces |
USB 3.0 |
Operational conditions
| Operating relative humidity (H-H) |
8 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
Power
| Output voltage |
12 V |
| AC input voltage |
110-240 V |
| Output current |
3 A |
Weight & dimensions
| Depth |
140 mm |
| Weight |
610 g |
| Width |
130 mm |
| Height |
70 mm |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) ports quantity |
1 |
| DC-in jack |
Y |
Indication
| LED indicators |
Activity, Power |
Additionally
| Colour of product |
Black |
| AC adapter bundled |
Y |
| Operating temperature range (T-T) |
5 - 80 °C |

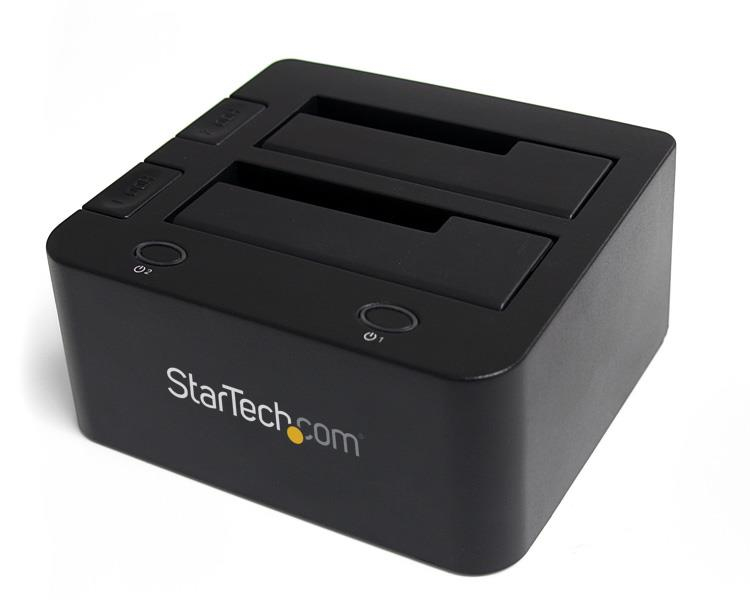

USB 3.0 to SATA IDE HDD Docking Station for 2.5in or 3.5in Hard Drive
Connect both IDE and SATA hard drives using top slot-loading bays through USB 3.0
The UNIDOCK3UEU USB 3.0 to SATA/IDE Hard Drive Docking Station delivers instant access to 2.5-inch and 3.5-inch IDE and SATA hard drives through two top loading drive slots - one for Serial ATA drives and one for IDE drives - instead of having to mount the drives into a computer or external enclosure/tray.
The slot-loading design holds the SATA and IDE drive(s) upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
Connected to the host computer through a single USB 3.0 connection, both an IDE hard drive and a SATA hard drive (SATA, SATA II, SATA III) can be connected to the HDD dock simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa, or simply harnessing fast and simple access to the contents on both hard drives. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives) can be used to greatly enhance your computer's storage/backup capabilities.
To ensure compatibility with your computer system, the UNIDOCK3UEU supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The StarTech.com Advantage
- Connect a SATA and IDE hard drive at the same time or separately, through a single USB 3.0 connection at up to 5 Gbps
- A top slot-loading design mounts both the SATA and IDE drive upright in the dock and off the desk for less clutter
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
