Other features
Ports quantity |
2 |
Compliance industry standards |
RoHS 6/6 |
Networking features |
10 Gigabit |
Ports & interfaces
Host interface |
PCI-E |
Internal |
Y |
Interface |
Ethernet |
Additionally
Wireless connections |
Y |
Jumbo Frames support |
Y |
Ethernet LAN connection |
Y |
Wireless technologies |
Wired |
2 x RJ-45, 10 Gigabit Ethernet LAN

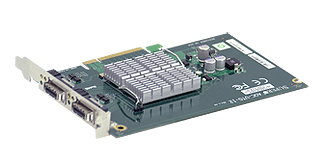

Supermicro Universal I/O 2-port 10-Gigabit Ethernet LAN card
AOC-UTG-i2 is a high-performance, dual-port 10Gb network controller optimized for multicore Intel Xeon processor-based servers and virtualized environments. This adapter addresses the networking bottlenecks associated with server consolidation and is ideal for virtualization and demanding enterprise applications such as storage and high-performance computing. This excellent energy-efficient UIO card is also an ideal choice to unify storage while maximizing performance with low TCO.
Highlights:
- High-performing, PCI-E 10Gb Ethernet connection ideally suited for demanding enterprise applications
- Dual-port, industry-leading, energy-efficient design
- Introduces multiple product innovation optimized for virtualization and ideal for server consolidation
- High-volume stable architecture that includes broad operating system support
- Optimized for Supermicro UIO servers and motherboards
Key Features:
- Dual-port Intel 82598EB with two CX4 connectors
- PCI-E x8 Full-height half-length UIO form factor
- Intel I/O Acceleration Technology (I/OAT) for improved CPU utilization
- Low-latency interrupts
- 16 Virtual Machine Device queues (VMDq) for virtualized environments
- Direct Cache Access (DCA) to eliminate cache misses and reduce CPU load
- Tx/Rx, IP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities to increase throughput and lower processor utilization
- Preboot eXecution Environment (PXE) support
- Jumbo Frames support up to 9.5KB packets
- Intel PROSet Utility for Windows Device Manager to support network teaming
- Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistic counters
- Energy-efficient design (maximum 6.5W)
- RoHS Compliant 6/6
- Support CX4 Copper cable up to 15m
- Operating temperature 0-55°C
- Storage humidity: 90% non-condensing relative humidity at 35°C
- OS Support: Windows, Linux, VMWare
