Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Security
| Static port security |
Y |
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
| SSH/SSL support |
Y |
Networking
| VLAN support |
Y |
| IGMP snooping |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| DHCP server |
N |
| Port mirroring |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| 10G support |
N |
| Full duplex |
Y |
Data transmission
| Number of trunks |
12 |
| MAC address table |
16000 entries |
| Supported data transfer rates |
10, 100, 1000 |
| Maximum data transfer rate |
1000 Gbit/s |
| Number of VLANs |
256 |
Protocols
| Management protocols |
SNMP v1/v2c/v3, RMON, IGMP v1/v2/v3 |
| Supported network protocols |
IPv4/v6, SNMP, RADIUS, TACACS+, DSCP, TOS, TCP, UDP, SA, DA, DNS |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
48 |
Ports & interfaces
| SFP module slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
48 |
| Fast Ethernet (copper) ports quantity |
48 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 1000BASE-TX, 100BASE-T, 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| SFP/SFP+ slots quantity |
4 |
Power
| Number of power supply units |
1 |
| Output power |
500 W |
Design
| Form factor |
1U |
| Rack mounting |
Y |

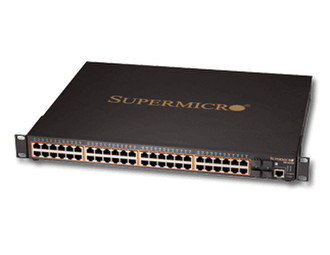

SSE-G2252P, Layer 2 Ethernet Switch, 1U, 48x RJ-45 PoE, 4x SFP, 500W, 5.3kg
Highlights
- Layer 2 Switching.
- Non-blocking connectivity.
- 1U form factor for flexible installation.
Summary
- 48 RJ45 10/100/1000 ports and.
- 4 SFP 1G ports.
- Non-blocking connectivity.
- Standard Layer 2 Features:.
- IPV4 and IPv6, QoS, 256VLANs.
- Jumbo Frame Support up to 9KB.
- RJ45 Console Port for CLI: Web Management GUI, CLI.
- Energy Efficient Ethernet (802.3az).
- Power-over-Ethernet (802.3at).
- Up to 30W per port / Up to 400W total PoE budget.
- Power supply: 500W (87% efficiency).
- 1U form factor for flexible installation.
- Dimensions (W x D x H): 440mm x 379mm x 43mm.
- Weight: 11.7 lbs / 5.3 kg.
