BIOS
| BIOS ACPI |
2.0 |
| BIOS memory size |
16 MB |
| BIOS type |
AMI |
Memory
| Non-ECC |
N |
| Memory form factor |
240-pin DIMM |
| Number of DIMM slots |
16 |
| ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.35, 1.5 V |
| Supported DIMM module capacities |
16GB, 1GB, 2GB, 32GB, 4GB, 8GB |
| Supported RDIMM clock speeds |
800, 1066, 1333, 1600 MHz |
| Maximum UDIMM memory |
128 GB |
| Maximum RDIMM memory |
512 GB |
| Maximum internal memory |
512 GB |
Processor
| Number of processors supported |
2 |
| Intel Xeon series |
E5-2600 |
Expansion slots
| PCI Express x16 slots |
2 |
| PCI Express x8 slots |
3 |
| PCI Express x4 slots |
1 |
| PCI Express slots version |
2.0, 3.0 |
Performance
| Intelligent Platform Management Interface (IPMI) support |
Y |
Ports & interfaces
| IPMI LAN (RJ-45) port |
Y |
| Microphone in |
Y |
Other features
| Graphics adapter family |
Matrox |
| Power LED |
Y |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| LAN controller |
Intel I350, Realtek RTL8201N |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Networking features |
Gigabit Ethernet |
Storage
| Supported hard disk drive sizes |
3.5 " |
| Supported storage drive interfaces |
Serial ATA II, Serial ATA III |
| Hot-swap hard drive bays |
Y |
| Number of hard drives supported |
10 |
Additionally
| Chipset |
Intel C602 |
| Graphics |
G200eW |
| System bus data transfer rate |
8 GT/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

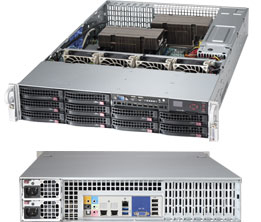

Intel Xeon E5-2600 (up to 150W TDP), 16 x 240-pin DDR3 DIMM, 512 GB DDR3 ECC, Gigabit Ethernet, 2 x SATA 3.0, 8 x SATA 2.0, 4 x USB 2.0, 4 x USB 3.0
- Cooling Optimized Solution.
- Support Hyper-Speed.
- Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s.
- Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets.
- 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8, 1x UIO PCI-E 3.0 x8 (for SMC UIO) or 1x PCI-E 2.0 x4 (in x8).
- I/O ports: 2 GbE LAN, 4 USB 3.0, 2 HD/AC97, 1 IPMI dedicated LAN ports, and 2 IEEE 1394 Header.
- 10x Hot-swap 3.5" HDD Bays.
- 1280W Redundant Power Supplies 80 PLUS, Platinum Level (95%).
