BIOS
| BIOS ACPI |
2.0 |
| BIOS memory size |
64 MB |
| BIOS type |
UEFI AMI |
Ports & interfaces
| Serial ports quantity |
2 |
| IPMI LAN (RJ-45) port |
Y |
| VGA (D-Sub) ports quantity |
1 |
Memory
| Supported UDIMM clock speeds |
800, 1066, 1333, 1600 MHz |
| Memory form factor |
240-pin DIMM |
| ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.35, 1.5 V |
| Supported DIMM module capacities |
16GB, 1GB, 2GB, 32GB, 4GB, 8GB |
| Supported RDIMM clock speeds |
800, 1066, 1333, 1600 MHz |
| Maximum UDIMM memory |
192 GB |
| Maximum RDIMM memory |
768 GB |
| Maximum internal memory |
768 GB |
Processor
| Number of processors supported |
2 |
| Intel Xeon series |
E5-2600 |
Performance
| Backplanes support |
Y |
| Intelligent Platform Management Interface (IPMI) support |
Y |
Expansion slots
| PCI Express x16 slots |
3 |
| PCI Express x8 slots |
1 |
| PCI Express slots version |
3.0 |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| LAN controller |
Intel I350 |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Networking features |
Gigabit Ethernet |
Storage
| Supported hard disk drive sizes |
3.5 " |
| Supported storage drive interfaces |
SAS, Serial ATA II, Serial ATA III |
| Hot-swap hard drive bays |
Y |
| Number of hard drives supported |
16 |
Power
| Power supply |
920 W |
| Power supply type |
AC-DC |
Additionally
| Chipset |
Intel C602 |
| Graphics |
G200 |
| System bus data transfer rate |
8 GT/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

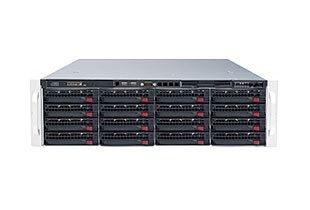

Intel Xeon E5-2600 (up to 130W TDP), 24x DDR3 DIMM, Intel C602 Chipset, SATA 3/2, 16x 3.5", 9x USB 2.0, 2x JBOD, VGA, Intel i350 Gigabit Ethernet, G200, 920 W, 64MB UEFI AMI BIOS, 21.8 kg, Black
1. Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s
2. Up to 768GB DDR3 1600MHz* ECC Registered DIMM; 24x DIMM sockets
* Depends on memory configuration
3. 3x PCI-E 3.0 x16 slots (FHFL) and 1x PCI-E 3.0 x8 slot (FHHL)
4. Intel® i350 GbE Controller; 4x ports
5. 16x Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays
6. Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3x Heavy duty PWM fans
9. 920W Redundant Power Supplies 80 PLUS, Platinum Level (94%)
