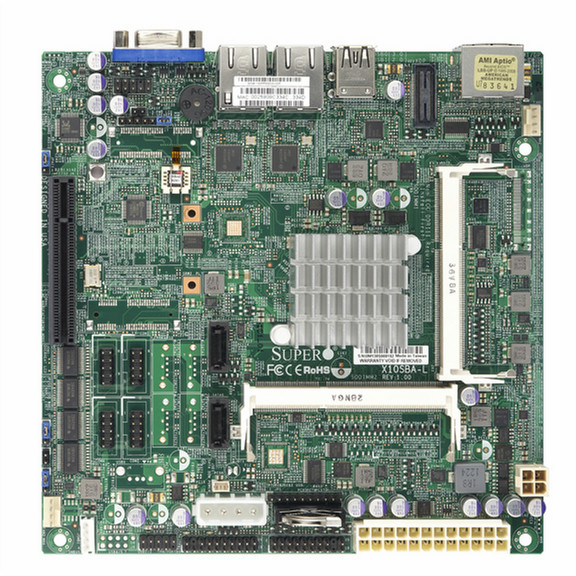

Supermicro X10SBA-L BGA1170 Mini ITX motherboard

Supermicro X10SBA-L BGA1170 Mini ITX motherboard

EAN: 4047762417536
MPN: MBD-X10SBA-L-O
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor Mini ITX
Trusted Platform Module (TPM) version 1.2
Motherboard chipset family Intel
PC health monitoring FAN, LED, Temperature
Audio system HD

Memory

Supported memory clock speeds 1066, 1333, 1600 MHz
Non-ECC Y
Supported memory types DDR3-SDRAM
Memory voltage 1.35 V
Memory slots type SO-DIMM
Supported memory module capacities 2GB, 4GB
Number of memory slots 2
Maximum internal memory 8 GB

BIOS

BIOS memory size 64 MB
BIOS type UEFI AMI
ACPI version 5.0

Internal I/O

USB 2.0 connectors 2
TPM connector Y
Number of SATA II connectors 2

Graphics

Graphics adapter family Intel

Expansion slots

PCI Express x8 (Gen 2.x) slots 1

Processor

Processor thermal power (max) 8 W
Processor cores 4
Processor frequency 2.42 GHz

Back panel I/O ports

DisplayPorts quantity 1
USB 3.0 (3.1 Gen 1) Type-A ports quantity 1
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1

Networking

Wi-Fi N

Additionally

Graphics HD Graphics
Ethernet LAN connection Y
Ethernet LAN (RJ-45) ports quantity 2
Intel Celeron J1900, Intel HD Graphics with HDMI, Display port and VGA, Intel i210AT dual port GbE LAN, 12V DC, Mini-ITX, Retail Pack Supermicro's motherboards based on Intel Celeron processor J1000 series System-on-Chip (formerly Bay Trail - D) are well-suited for server, storage, networking, and embedded appliance market.
