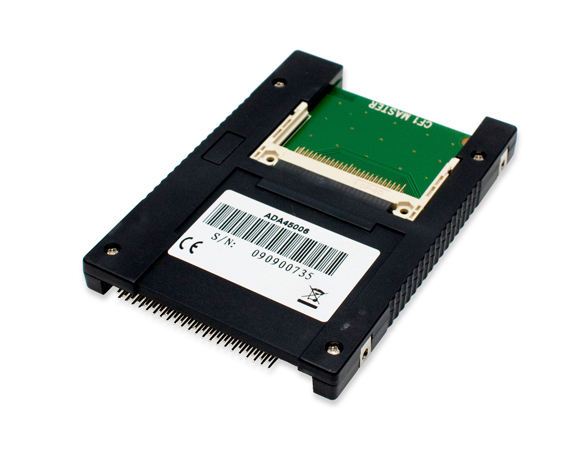

SYBA SD-ADA45006 Internal IDE Black card reader

Replace Laptop 2.5” IDE 44-Pin HD with Dual Compact Flash as a Solid State Drive Great DIY project for Solid State Drive. Supports Ultra-DMA up to 150MB/s data transfer rate

- 2.5” IDE 44-pin to Dual Compact Flash Adapter
- Standard 2.5” IDE storage device form factor (100.2mm x 69.9mm x 9.8mm)
- LED indicators: Power On, Master and Slave Card Detect, and Disk Activity
- Can be a primary bootable device containing the OS and applications depends on CF card specifications)
- Transparent to operating system and does not require any drivers
- Supports Microsoft Windows 2000, XP 32/64-bit, Server 2003 32/64-bit, Vista 32/64-bit, Server 2008 32/64-bit and Linux operating systems
- Power supply via IDE interface (44-pin SFF IDE connector, +5V)
- IDE Interface
44-pin SFF (Small Form Factor) IDE connector (The middle KEY pin can be removed to fit some of the 44-pin cable with the KEY hole blocked)
Supports Ultra-DMA IDE Interface
Does not support hot swap on the IDE interface

- CF Interface
2 CF card slots (Master/Slave) supporting CF Type I form factor
Supports PIO mode, DMA and Ultra-DMA mode with data transfer rate up to 150M Byte/sec depends on CF card speed)
Does not support hot swap on CF interface
