Ports & interfaces
| Port multiplier |
Y |
| Internal SATA ports quantity |
5 |

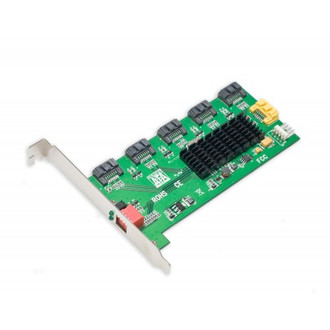

5 Port SATA II Port Multiplier RAID 0 / 1 / 3 / 5 / 1+0 Card
The Syba SY-PCI40037 5 Port SATA II Port Multiplier RAID Card is designed to provide a high performance link between a single SATA II host port and 5 SATA device ports. It expands one upstream SATA II port to 5 downstream SATA II ports. With its hot-plug and hot-swap features, it is an ideal upgrade solution to support SATA and SATA II devices for the rapidly changing data. OS Support: Windows 2000, XP, 2003, Vista,Win7, Win8, Win 8.1, Linux kernel 2.6 and above.
- With an easy configuration scheme, the device can be a pure port multiplier in a RAID configuration which provides SATA port expansion just like a SATA Hub, or hard-drive performance booster which provides a high performance device seen by host controller or hard-drive data protector which automatically backup data to prevent data loss from hard-drive damage. JMB393 also has advance mode to provide both benefit of performance boost and data protection.
- JMB393 is a self-contained storage processor chip which completely frees up the main CPU loading.
- External Dip Switch for Easy RAID Configiration
- Provides SATA Port Expansion, Data Protection and Performance
- Supports 5-port 3.0 Gbps SATA II Interface
- Supports SATA II Gen2i and Gen2m
- Automatically Speed Negotiation for 3Gbps or 1.5Gbps
- Supports Native Command Queue (NCQ)
- Supports Hot-plug
- Supports PM Aware and Non-PM Aware Host
<b>RAID feature:</b>
- ○Port Multiplier functional in Clear Mode only to a SATA Port that supports Port Multiplying.
- ○Fully hardware-accelerated RAID Engine
- No driver, BIOS or software required for RAID operation
- No external DRAM or processor required for RAID operation
- Independent of device SATA port connection sequence
- Supports RAID levels: 0 / 1 / 3 / 5 / 10 / LARGE / CLONE
- RAID 3 / 5 write-back cache to enhance performance
- SATA In-band application interface
- Supports more than 2Tera Bytes RAID drive
- Supports on-line command based bad sector recovery
- Supports on-line Auto-Rebuild
- Rebuild speed: 200GB/hour
- Rebuild proceed continuously between power cycling
- Supports various RAID configuration and monitoring method
