Performance
Internal memory type |
DDR3 |
Internal memory |
1000 MB |
Processor frequency |
1 GHz |
Syslog |
Y |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Number of fans |
1 |
Built-in processor |
Y |
Maximum frame rate |
120 fps |
Image formats supported |
MJPEG |
Video input channels |
9 |
Storage
Hard drive capacity |
2000 GB |
Total installed storage capacity |
4000 GB |
RAID support |
Y |
Number of hard drives installed |
2 |
Number of hard drives supported |
2 |
Maximum storage capacity |
20 TB |
Hard drive interface |
Serial ATA II, Serial ATA III |
Ports & interfaces
eSATA |
Y |
Microphone in |
Y |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
Additionally
Выход HDMI |
Y |
AC adapter bundled |
Y |
On/Off switch |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |
Dual Core 1.0 GHz, 1 GB DDR3, 2x 2 TB SEAGATE SV HDD, HDMI, 2x USB 2.0, USB 3.0, eSATA, RJ-45, 165 x 100 x 225.5 mm, 0.9 kg

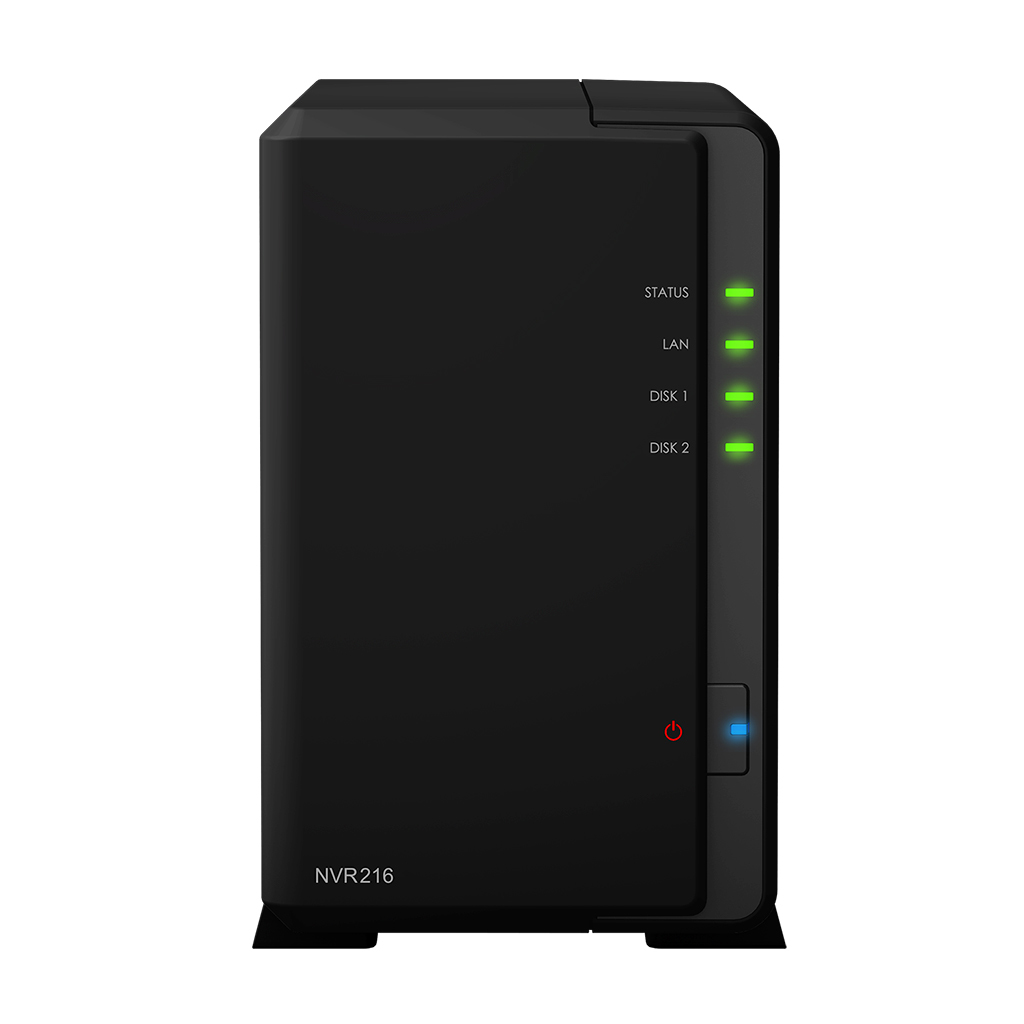

Coming with a dedicated 1080p HDMI output, Synology Network Video Recorder NVR216 is an all-in-one, PC-less surveillance solution designed for offices and retail stores where space is precious. Capable of displaying and recording up to 4 or 9 IP cameras, expandable to 7 bays of storage with DX513, and extremely energy-efficient, NVR216 offers an effortless surveillance experience.
<b>1080p HDMI output for local display</b>
Equipped with a dedicated HDMI output to display at 1080p resolution on a monitor, you can watch surveillance feeds and manage cameras and recordings without using a computer. It supports 720p at up to 9 channels/30FPS or even 5 megapixels with fewer channels/FPS.
<b>Intuitive Surveillance Station to streamline deployment</b>
Synology Surveillance Station provides a user friendly and centralized interface, letting you manage and monitor IP cameras in your shop or office. It delivers robust features, such as the Live View panel with on-screen operations for monitoring video streams from multiple IP cameras, Timeline panel letting you select a date and time and then play back recordings from multiple channels at once, and an instant alert system to keep you always notified. With NVR216, it’s easy to monitor and protect your physical environment from practically anywhere, anytime - via local display, browsers, or mobile devices.
<b>On-the-go surveillance with DS cam mobile app</b>
Available on iOS and Android devices, DS cam is the mobile extension of Surveillance Station — allowing you to access Live View, playback, adjust PTZ, and receive push notifications. You can browse through recorded events and use a timeline bar to move backward or fast forward. With DS cam, it’s easy to monitor IP cameras located anywhere in the world. Never worry about missing any suspicious events!
<b>Expandable recording storage, up to 7 drives</b>
NVR216 can be connected to Synology DX513 expansion unit to expand the available space from 2 to 7 drives, allowing users to create a RAID 5 volume and find the ideal balance for their storage strategy. Once connected via eSATA with a specially designed locking cable, NVR216’s raw capacity can be as high as 56TB.
<b>Get the alert. Don’t miss a thing</b>
It’s impossible to keep your eyes on a monitor all day. So how do you protect your store after closing time? Surveillance Station provides multiple notification settings to keep you alerted. For example, when a thief sneaks into your shop and is detected by a camera, you will receive snapshots of the recordings through email. In this case, even if your NVR216 has been tampered with, you will keep the evidence. If camera is disconnected or damaged, you can also receive a message via SMS and push notifications on DS cam for iOS and Android devices.
<b>Easy navigation and two-way audio</b>
NVR216 comes with three USB ports, including one USB 3.0, allowing you to connect to a mouse and keyboard to navigate between different camera streams with ease. Plug a microphone on the audio input and speak directly to individuals via cameras with two-way audio.
<b>Extensive support for different types of cameras</b>
Deploying a surveillance solution can be simpler if you have a good start. NVR216 runs Surveillance Station which supports ONVIF Standards and is compatible with more than 4700 cameras with a wide range of variety, from 90 or more renowned brands. You can select fisheye, PTZ, multi-lenses, or Wi-Fi cameras according to your preference and needs to safeguard your shops!
<b>Eco-friendly Network Video Recorder</b>
NVR216 is designed with energy efficiency and quietness in mind. When paired with 9 channels of camera streaming, continuously recording, and with HDMI output enabled, NVR216 only consumes 14.14W -as little power as one energy saving light bulb! In addition, NVR216 is built with RoHS compliant parts.
<b>Watch your premises simply via a monitor</b>
Optimize your budget and retail space when deploying a surveillance solution. Connect NVR216 to a monitor via a 1080p HDMI output, and start to watch live view streams and manage cameras. Everything can be done without a PC. No matter what business you do, NVR216 helps you to save money and room that could be used for more things.
