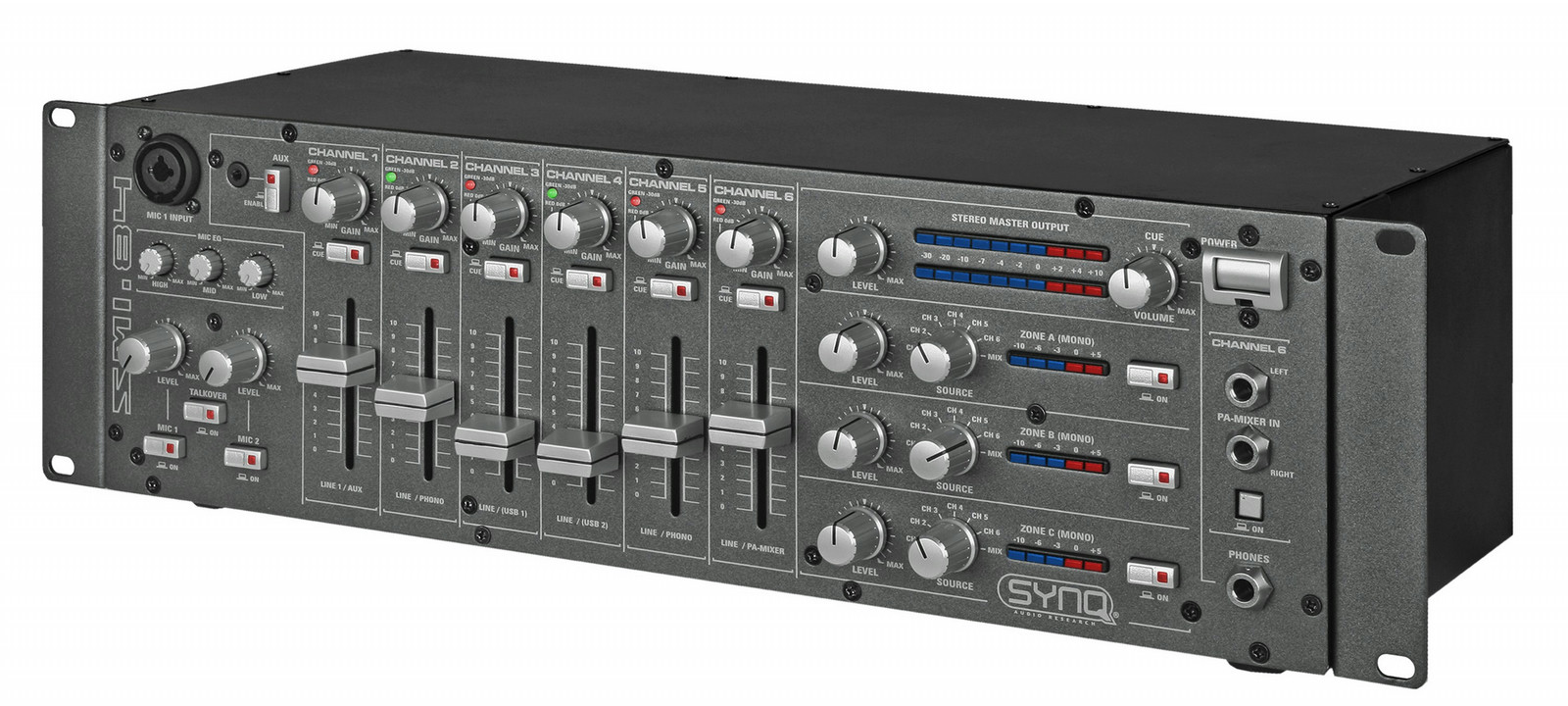

SynQ SMI 84 6channels 20 - 20000Hz audio mixer

20 - 20000Hz, 220-250V, 4.2kg The perfect all-round zone mixer for pubs, bars, hotel, restaurants, …
Easy operation, focused on inexperienced users (advanced settings on rear panel)

4 Totally independent zones:

1 Stereo zone:
- Balanced XLR + Euroblock connectors and RCA/cinch
- master mix
- Volume with max. level trimming
- 3band tone control (rear panel)
- 2x 10segment level meters
- Separate talkover for both mics (rear panel)

3 mono zones, each with:
- Balanced XLR + Euroblock connectors
- Individual source select + master mix
- Volume with max. level trimming
- 2band tone control (rear panel)
- 5segment level meters
- Separate talkover for both mics (rear panel)
- Mics can be included/excluded for each zone (rear panel)
- 100Hz HP-filter to protect small speakers (rear panel)

6 Input channels, with input selection on rear panel (7line + 2phono + 2USB)
- CH1: 3,5mm line input available on the front panel
- CH6: balanced PA-mixer input (front + rear panel)

2 Microphones with 3band tone control and zone assignable, adjustable talkover.
Every Channel has individual peak and signal present leds.
Gain levels, PFL and smooth 45mm PRO-faders on all channels
2 Record outputs: 1 cinch + 1 USB
“Output mute" input on Euroblock connector (closed contact = mute)
Emergency input with level control on Euroblock connector: any emergency message will be sent to all zones, while automatically muting all input channels.
