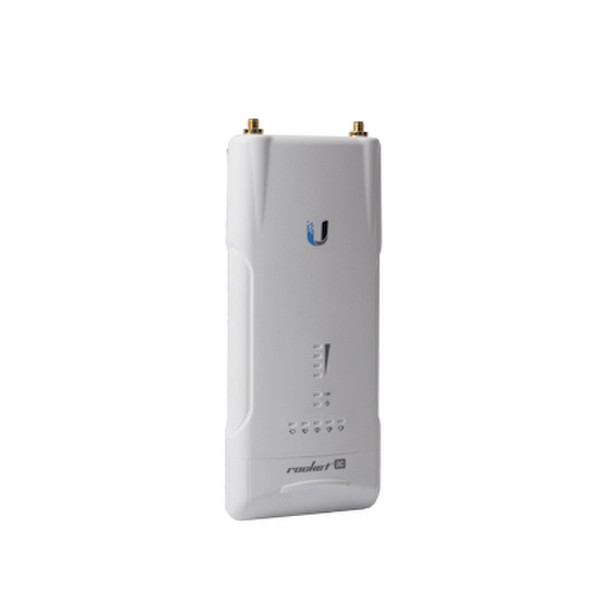

Syscom R5ACPTMP 1000Mbit/s Power over Ethernet (PoE)

5GHz, 802.11ac, 27dBm, Gigabit Ethernet, PoE, White <b>Powerful airMAX® ac BaseStation</b>
Model: R5AC-Lite, R5AC-PTP, R5AC-PTMP
airMAX ac Technology for up to 500+ Mbps Throughput
Superior Processing by airMAX Engine with Custom IC
Plug and Play Integration with airMAX ac Antennas

<b>Overview</b>
Ubiquiti Networks has designed the first airMAX® ac radios with high
performance and ease of installation in mind. You have the freedom to
deploy the Rocket™ ac anywhere in the world, and it allows for a high degree
of flexibility in configuring channel bandwidths (subject to local country
regulations).
The Rocket ac is available as three models: the Rocket5ac Lite,
Rocket5ac PtP, and Rocket5ac PtMP.
All three include airMAX ac technology. The Rocket5ac PtP and
Rocket5ac PtMP also feature airPrism™ technology to further enhance
performance.
Pair the Rocket ac with airMAX ac antennas for optimal performance:
- PtP backhaul Rocket5ac Lite or Rocket5ac PtP with the RocketDish™ ac
- PtMP links Rocket5ac PtMP or Rocket5ac Lite with the airMAX ac Sector

<b>Software</b>
Sporting an all-new design for improved usability, airOS® v7 is the
revolutionary operating system for Ubiquiti® airMAX ac products.

<b>Powerful Wireless Features</b>
- airMAX ac Protocol Support
- Long-Range PtP Link Mode
- Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
- Automatic Channel Selection
- TX Power Control: Auto/Manual
- Automatic Distance Selection (ACK Timing)
- Strongest WPA2 Security
<b>Usability Enhancements</b>
- Dynamic Configuration Changes
- Instant Input Validation
- HTML5 Technology
- Optimization for Mobile Devices
- Detailed Device Statistics
- Diagnostic Tools, including Ethernet
Cabling Test, RF Diagnostics, and airView® Spectrum Analyzer

<b>Advanced RF Analytics</b>
airMAX ac devices feature a multi‑radio architecture to power a revolutionary RF analytics engine.
An independent processor on thePCBA powers a second, dedicated radio, which persistently analyzes
the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.
Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and irView Spectrum Analyzer.
<b>Real-Time Reporting</b>
The Main tab displays the following RF information:
- Persistent RF Error Vector Magnitude (EVM) constellation diagrams
- Carrier to Interference-plus-Noise Ratio (CINR) histograms
- Signal-to-Noise Ratio (SNR) timeseries plots
<b>Spectral Analysis</b>
airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:
- Constantly monitors environmental noise
- Collects energy data points in real‑time spectral views
- Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network.
In airView, there are three spectral views, each of which represents different data.
- Waterfall Aggregate energy collected for each frequency
- Waveform Aggregate energy collected
- Ambient Noise Level Background noise energy shown as a function of frequency
Available with a firmware upgrade to airOS v7.1, airView provides powerful
spectrum analyzer functionality, eliminating the need to rent or
purchase additional equipment for conducting site surveys.

<b>Technology</b>
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX ac protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX ac technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
<b>Intelligent QoS</b>
Priority assigned to voice/video for seamless streaming.
<b>Scalability</b>
High capacity and scalability.
<b>Long Distance</b>
Capable of high‑speed, carrier-class links.

<b>Superior Performance</b>
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol.
Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
<b>Throughput Breakthrough</b>
airMAX ac supports high data rates, which require dense modulation:
256QAM – a significant increase from
64QAM, which is used in airMAX.
With their use of proprietary airMAX ac technology, airMAX ac products supports up to 500+ Mbps (maximum 80 MHz channel width) real TCP/IP throughput – up to triple the throughput of standard airMAX products.

<b>Technology</b>
To enhance airMAX ac performance, Ubiquiti Networks introduces our patented airPrism™ technology, which is featured on the Rocket ac models, R5AC-PTP and R5AC-PTMP.
<b>Improves SNR</b>
High data rates require a high Signal‑to‑Noise Ratio (SNR), which is challenging to achieve, especially in noisy, high‑density areas. Integrated into Ubiquiti’s custom silicon, airPrism technology creates a high SNR by isolating signals within the operating channel and rejecting interference using specialized circuitry, the High‑Selectivity Receiver (HSR).

<b>Removes Interference</b>
Depending on the product model and operating mode, available channel widths may include 10, 20, 30, 40, 50, 60, and/or 80 MHz.
Theoretically APs operate on different channels; however, because of the wider channel bandwidths, there can be overlap in spectrum usage.
airPrism technology removes up to an additional 30+ dB of adjacent channel interference through the active filtering design, so an airMAX ac AP with airPrism technology can provide significantly greater performance than a typical AP.

<b>Facilitates AP Co-Location</b>
Co-location is vital in many scenarios. For example, a WISP may have limited tower space, so it must co‑locate all APs within that allotted footprint. Shielding and other means can lessen interference but may be impractical. By deploying airMAX ac APs with airPrism technology, you can co‑locate APs and enhance the overall performance of your wireless network.

<b>Models</b>
<b>Features</b>
5 GHz Frequency Band This unlicensed band of plentiful spectrum works well for long-distance links. Gigabit Ethernet Deliver high throughput over its wired connection.
<b>Rocket5ac Lite</b>
Launched with PtP functionality, the Rocket5ac Lite adds PtMP functionality with a firmware upgrade to airOS v7.1 or higher. The Rocket5ac Lite is a cost-effective basestation for links experiencing low or moderate levels of interference.
Passive Power over Ethernet (PoE) 24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Rocket ac. Use the included PoE Adapter or an optional PoE switch.
<b>Rocket5ac PtP</b>
Featuring Ubiquiti’s airPrism technology, the Rocket5ac PtP is designed for optimal PtP performance, although it can operate in PtMP mode. To take full advantage of its design and capabilities, deploy the Rocket5ac PtP for PtP links in noisy, high-density areas.
Plug and Play Integration Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket ac. (airMAX ac antennas are recommended for optimal performance.)
<b>Rocket5ac PtMP</b>
Also featuring Ubiquiti’s airPrism technology, the Rocket5ac PtMP is designed for optimal PtMP performance, although it can operate in PtP mode. To take full advantage of its capabilities, deploy the Rocket5ac PtMP for PtMP links to airMAX ac CPEs located in crowded RF environments.

<b>Plug and Play Integration</b>
Rocket radios and airMAX antennas have been designed to seamlessly work together. Every airMAX antenna has a built‑in
Rocket mount, so installation requires no special tools.
