Performance
| Processor frequency |
500 MHz |
Networking
| Short Message Service (SMS) |
Y |
| Routing protocols |
BGP, IS-IS, OSPF, RIP-1, RIP-2 |
| Wake-on-LAN ready |
Y |
| Network address translation (NAT) |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Mobile networking
| UMTS bands supported |
800, 850, 900, 1900, 2100 MHz |
| 3G standards |
HSDPA, HSUPA, UMTS |
| 2G standards |
EDGE, GPRS, GSM |
| 3G |
Y |
| GSM bands supported |
850, 900, 1800, 1900 MHz |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Security
| VPN tunnels quantity |
30 |
| MAC address filtering |
Y |
Other features
| Mobile network connection |
Y |
| xDSL connection |
N |
| Internal memory |
256 MB |
| Flash memory |
4000 MB |
| Rack mounting |
N |
| USB version |
2.0 |
| USB ports quantity |
2 |
Power
| Power over Ethernet (PoE) |
Y |
| Power source type |
DC |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

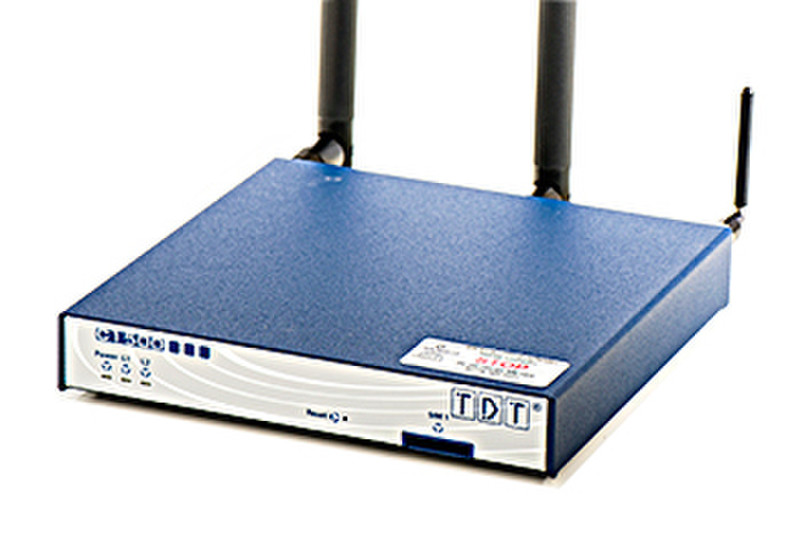

C1500hw Router with IPSec and OpenVPN, 3G, WiFi
- GPRS, EDGE, UMTS, HSPA.
- Full implemented IPSEc and OpenVPN.
- Intelligente Firewall.
- Perl Interpreter.
- Intelligentes Routing.
- Connection Manager.
- Wide Temperature Range.
- Metal Housing, Industrial Qualiity.
C1500hw Router Functions and Characteristics.
Due to its modular construction the C1500hw 3G+ or 4G (LTE) mobile are especially suitable for industrial use. An important thing to note is its extremely high reliability due to the use of two SIM cards (dual SIM support) and the the intelligent backup management of the VPN router. This guarantees almost 100% availability.
The fully implemented IPSec and OpenVPN standard, guarantees the highest security during transmission of data. The authentication can be made either using deposited certificates or pre-shared keys. All modern encryption algorithms such as 3DES or AES with up to 256 bit key length are supported.
The LTE VPN router can be easily integrated into a company network (via the permanently established VPN tunnel) and can also be accessed via private IP addressing; therefore in this case DynDNS is not necessary, but it can be established at any time. Terminal equipment is connected using two Ethernet ports or WLAN.
To render your network secure from attacks a configurable high security firewall with intrusion detection is available. This can be supplmented by the possibility of depositing your own scripts and rules. The so-called Perl Scripting Interpreter offers the possibility for your own individual software installation on the VPN router.
The 3G radio connection is made using a multi-band modem HSPA/UMTS/EDGE/GPRS.
For configuration, a web interface with a user-friendly interface is provided (see the handbook).Hence, the VPN router can be locally or remotely configured.Experts can also configure the VPN router using a CLI (command line interface), and it can even be accessed and even send commands via text messages (e.g. Reset).
