Wireless LAN features
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
Other features
| Internal memory |
256 MB |
| USB ports quantity |
2 |
| USB version |
2.0 |
| Flash memory |
4000 MB |
| xDSL connection |
N |
| Mobile network connection |
Y |
Ethernet LAN features
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Mobile networking
| 4G |
Y |
| GSM bands supported |
1900, 1800, 900, 850 MHz |
| 3G |
Y |
| 2G standards |
GSM, GPRS, EDGE |
| 3G standards |
UMTS, HSUPA, HSPA+, HSDPA |
| UMTS bands supported |
2100, 1900, 900, 850, 800 MHz |
| 4G bands supported |
2600, 2100, 1800, 900, 800 MHz |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
Management features
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
Security
| MAC address filtering |
Y |
| VPN tunnels quantity |
30 |
Power
| Power over Ethernet (PoE) |
Y |
Performance
| Processor frequency |
500 MHz |
Networking
| Network address translation (NAT) |
Y |
| Wake-on-LAN ready |
Y |
| Routing protocols |
RIP-2, RIP-1, OSPF, IS-IS, BGP |
| Short Message Service (SMS) |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| AC adapter bundled |
Y |
| Ethernet LAN connection |
Y |

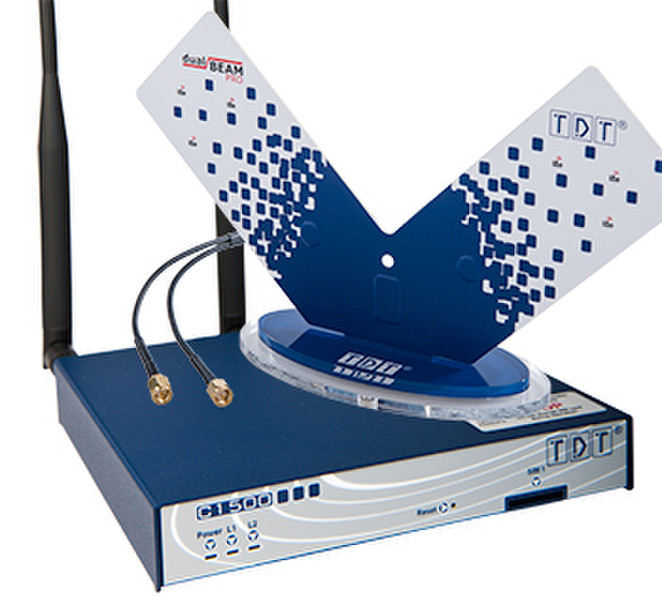

C1500lw Router with IPSec and OpenVPN, 4G/LTE, WLAN
- GPRS, EDGE, UMTS, HSPA, HSPA+, LTE.
- Fully implemented IPSec and OpenVPN.
- Intelligent Firewall.
- Perl Interpreter.
- Intelligent Routing.
- Connection Manager.
- Wide Temperature Range.
- Metal Housing, Industrial Qualiity.
- E1 approval for vehicles issued by "Kraftfahrt Bundesamt".
Due to its high manufacturing quality the C1500iw 4G mobile router is especially suitable for use in industrial environments. An important thing to note is its extremely high reliability due to the use of two SIM cards (dual SIM support) and the the intelligent backup management of the VPN router. This guarantees almost 100% availability.
The fully implemented IPSec and OpenVPN standard, guarantee the highest security during transmission of data. The authentication can be made either using deposited certificates or pre-shared keys. All modern encryption algorithms such as 3DES or AES with up to 256 bit encryption length are supported.
The 4G router can be easily integrated into a company network (via permanently established VPN tunnel) and can also be accessed via private IP addressing. In this case DynDNS is not necessary, but it can be established at any time. Terminal equipment is connected using two Ethernet ports.
To render your network secure from attacks a configurable high security firewall with intrusion detection is available. This can be supplmented by the possibility of depositing your own scripts and rules. The so-called Perl Scripting Interpreter offers the possibility for your own individual software installation on the VPN router.
Using one of the Ethernet ports the router can be connected to a fixed point via a DSL modem. The backup management is implemented using 3G/4G.
The 3G and also 4G radio connection is made using a multi-band modem LTE/HSPA+/HSDPA/HSUPA/UMTS/EDGE/GPRS.
Using LTE you have an even larger bandwidth available on the VPN router Here you can find a detailed description of LTE.
For configuration, a web interface with a user-friendly interface is provided (see the handbook).Hence, the VPN router can be locally or remotely configured.Experts can also configure the VPN router using a CLI (command line interface), and it can even be accessed and even send commands via texts (e.g. Reset).
