Performance
Processor frequency |
500 MHz |
Internal memory |
256 MB |
Flash memory |
4000 MB |
Networking
Short Message Service (SMS) |
Y |
Wake-on-LAN ready |
Y |
Network address translation (NAT) |
Y |
Ethernet LAN features
Cabling technology |
10/100Base-T(X) |
Ethernet LAN data rates |
10, 100 Mbit/s |
Ports & interfaces
WAN connection |
Mobile network (SIM) |
USB version |
2.0 |
USB ports quantity |
2 |
Protocols
Routing protocols |
BGP, OSPF, RIP-1, RIP-2 |
DMZ support |
Y |
DHCP client |
Y |
DHCP server |
Y |
Mobile networking
4G bands supported |
800, 900, 1800, 2100, 2600 MHz |
UMTS bands supported |
800, 850, 900, 1900, 2100 MHz |
Data network |
4G, EDGE, GPRS, GSM, HSDPA, HSPA+, HSUPA, LTE, UMTS |
GSM bands supported |
850, 900, 1800, 1900 MHz |
Security
VPN tunnels quantity |
30 |
System event log |
Y |
Firewall |
Y |
Power
Power over Ethernet (PoE) |
Y |
Power source type |
DC |
Management features
Quality of Service (QoS) support |
Y |
Web-based management |
Y |
Additionally
RS-232 port |
1 |
Ethernet LAN connection |
Y |
AC adapter bundled |
Y |
Ethernet LAN (RJ-45) ports quantity |
5 |

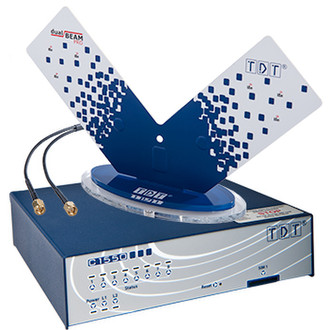

C1550l Router with IPSec and OpenVPN, Lte
- 4+1 Ethernet Ports, 3G, 4G/Lte.
- 8 freely configurable LEDs.
- Fully implemented IPSec and OpenVPN.
- Intelligent Firewall.
- Perl Interpreter.
- Intelligent Routing.
- Connection Manager.
Due to its high manufacturing quality the C1550l 3G/4G, Lte mobile router is especially suitable for use in industrial environments. An important thing to note is its extremely high reliability due to the use of two SIM cards (dual SIM support) and the intelligent backup management of the VPN router. This guarantees almost 100%reliability.
The fully implemented IPSec or OpenVPN Standard guarantee the highest security during transmission of data. The authentication can be made either using deposited certificates or pre-shared keys. All modern encryption algorithms such as 3DES or AES with up to 256 bit encription length are supported.
The 3G/4G router can be easily integrated into a company network (via the permanently established VPN Tunnel) and can also be accessed via private IP addressing. In this case DynDNS is not necessary, but it can be established at any time. Terminal equipment is connected using four (switch) plus one (own MAC Address) Ethernet ports.
Using one of the Ethernet ports, the router can be connected to a fixed landline connection via a DSL modem. The Backup Management is achieved via 3G/4G.
To render you network secure from attacks, a configurable high security firewall with intrusion protection is available. This can be supplemented by the possiblity of depositing your own scripts and rules. The so-called Perl Scripting interpreter offers the possibility of your own individual software installation on the VPN router.
The 3G/4G Lte radio connection is carried out via a multiband modem Lte/HSPA+/HSPA/UMTS/EDGE/GPRS.
Using LTE (Long Term Evolution) a much larger bandwidth of the VPN router is available. Here you can find a detailed description of LTE.
For configuration a web interface with a user-friendly interface is provided (see the handbook). Hence, the VPN router can be locally or remotely configured. Experts can also configure the VPN router using a CLI (command line interface), and it can even be accessed and send commands via text messages (e.g. Reset).
