Performance
| Processor frequency |
500 MHz |
Networking
| Short Message Service (SMS) |
Y |
| Routing protocols |
BGP, IS-IS, OSPF, RIP-1, RIP-2 |
| Wake-on-LAN ready |
Y |
| Network address translation (NAT) |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Security
| VPN tunnels quantity |
30 |
| System event log |
Y |
| Firewall |
Y |
| MAC address filtering |
Y |
Other features
| Mobile network connection |
N |
| xDSL connection |
N |
| Bandwidth (second) |
5 GHz |
| Bandwidth (first) |
2.4 GHz |
| Internal memory |
256 MB |
| Flash memory |
4000 MB |
| Rack mounting |
N |
| USB version |
2.0 |
| USB ports quantity |
2 |
Power
| Power over Ethernet (PoE) |
Y |
| Power source type |
DC |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
5 |

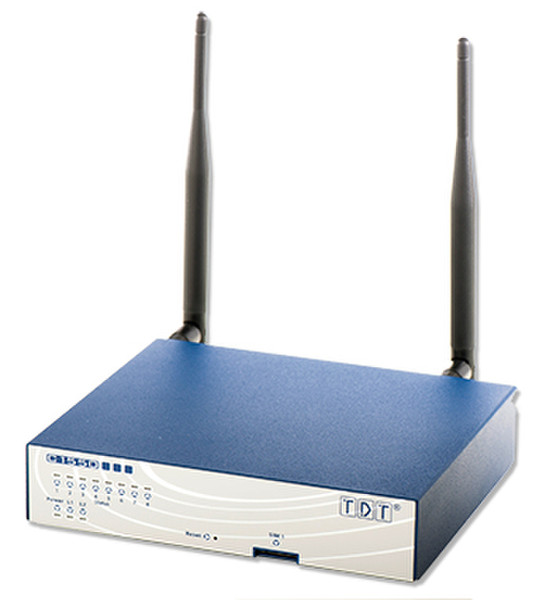

C1550w Router with IPSec and OpenVPN, WLAN
- 4+1 Ethernet Ports, WLAN.
- 8 freely configurable LEDs.
- Fully implemented IPSec and OpenVPN.
- Intelligent Firewall.
- Perl Interpreter.
- Intelligent Routing.
- Connection Manager.
- E1 approval for vehicles issued by "Kraftfahrt Bundesamt".
Due to its high manufacturing quality the C1550w is especially suitable for use in industrial environments. The extended temperature range and rugged metal housing enable operation in harsh environments.
The fully implemented IPSec and OpenVPN standard, guarantee the highest security during transmission of data. The authentication can be made either using deposited certificates or pre-shared keys. All modern encryption algorithms such as 3DES or AES with up to 256 bit key length are supported.
The router can be easily integrated into a company network (via the permanently established VPN Tunnel) and can also be accessed via private IP addressing. In this case DynDNS is not necessary, but it can be established at any time. Terminal equipment is connected to the router using WLAN and/or four (switch) plus one (own MAC Address) Ethernet ports.
To render you network secure from attacks, a configurable high security firewall with intrusion protection is available. This can be supplemented by the possiblity of depositing your own scripts and rules. The so-called Perl Scripting interpreter offers the possibility of your own individual software installation on the VPN router.
For configuration, a web interface with a user-friendly interface is provided (see the handbook).Hence, the VPN router can be locally or remotely configured.Experts can also configure the VPN router using a CLI (command line interface), and it can even be accessed and configured via text messages.
A row of 8 freely configurable LEDs provide the disply of a variety of router status (e.g. field strength with the radio modem version).
