TEAC HA-501

XLR-3-31, Line-in x 2, Aux in, 110dB S/N Ratio <b>Everything is Designed to Maximize Headphone Potential</b>
<b>Full-Analog Dual Monaural Headphone Amplifier</b>

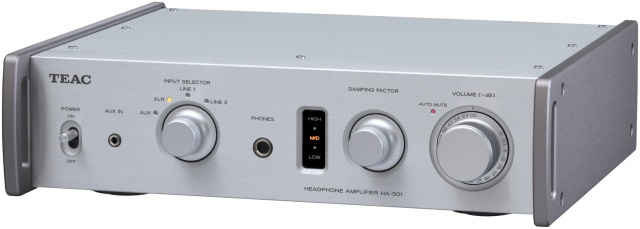

Introduce yourself to TEAC’s HA-501, a fully analog, dual monaural headphone amplifier with elegance. Part of the 501 series, this Class-A amplifier delivers superior sound quality, a sleek, modern look, all encased in a rugged but compact design. The HA-501 supplies regular headphone listeners with quality sound, features and adaptable options that cannot be found in regular amplifiers. Pair it with your favorite headphones the same way you would a normal amp with favored speakers and take advantage of DC Servo Technology, Switchable damping Factors, High Output Power, a large Toroidal-Core Power Transformer and relax to your favorite music or radio broadcast.

<b>Main Features</b>
- A lavishing Class-A Amplifier for superior sound quality. (Full-analog Dual Monaural Discrete design)
- Active DC Servo Technology to eliminate Offset Electrical Potential, to achieve stable drive.
- Switchable Damping Factor, to dive diaphragm under the best conditions. (5 positions)
- 1,400mA/ch (32 ohm loaded) of high output power to drive a high impedance headphones as high as 600 ohms.
- A Toroidal-Core Power Transformer for stable current supply.
- Full-metal jacket. Gorgeous aluminum panels for front top and sides. Small footprint fits your desktop.

<b>A headphone Amplifier to Achieve peak headphone performance</b>
In general, a headphone output from conventional hi-fi components does not allow even high-quality headphones to perform at their peak potential. The same way one chooses an amplifier to match with your favorite speakers, it is very impotant to chosse an appropriate headphone amplifier that matches your favorite headphones. A headphone amplifier is a "must-have" listening device for audiophiles.

<b>Active DC Servo Technology for decreased distortion, and discrete Class-A Amplifier</b>
In order to develop a first-class low distotion Class-A headphone amplifier, TEAC held a series of sound evalutions during the development. These tests led to the careful choosing of parts and descrete circuit design. In addition, like most full-size hi-fi components, in order to eliminate Offset Electrical Potential, Active DC Servo Technology is utilized.

<b>Dual Monaural Design that eliminates interference between Left and Right channels</b>
In regards to the circuit design, each channel is completely designed on an individual basis to avoid signal interface to/from another. This contribution eliminates cross-talk, crucial headphone listening.

<b>MUSES8920 Op-Amps - for high-end quality</b>
MUSES8920 Op-Amp chip-sets are designed for high-end audio. Employed individually on the Left and Right channels, they help achieve superior sound. This Op-amp performs superb IV-conversion and is already very well regarded and used in a wide-range of hi-fi components.

<b>A Large Toroidal-core Power Transformer</b>
An over-sized Toroidal-core power transformer is also employed to supply stable current to the every part of the circuit.

<b>Damping Factor Selector to optimize headphones' characteristic</b>
Each pair of headphones has its Damping Factor, a resisting force against non-intentional movement of the diaphram moving air forwards and backwords as sound. The value of the Damping Factor varies model by model, as diaphrams are made by different materials, in different shapes or different construction designs. Since headphones' diaphrams are activated by a very small current compared to conventional speakers, the damping factor increases, the sound is lean and crisp, and has a close relationship with headphones' impedance. Therefore, selecting the right Damping Factor is crucial in order for your headphones to perform at their peak potential. The HA-501 provides 5 selectable Damping Factors, so users have the best suited signal for multiple headphones.

<b>Total 2,800mA of output power drives your high impedance headphones</b>
The HA-501 schieves a remarkable 1,400mW output power per channel at 32 ohms impedance. The divice delivers not only enough power to drive standard headphones with an impedance range from 80 to 250 ohms, but also high-class 600 ohms hi-fi headphones.

<b>Robust Aluminum Body with a Classy Appearance</b>
Re-defining high class hi-fi components, the HA-501 has a small footprint, classy appearance and is constructed with aluminum panels to create an authentic but modern looking hi-fi component. A robust metal construction helps eliminate vibrations that may affect the sound quality. The bottom and sidewalls are formed with a steel chassis, aluminum for the front panel and the rear panel out of steel. In order to ensure it's rugged design, each panel is connected with a beam that runs through the center of the unit. Normally, this type of construction is only for full-size components, particularly CD players that generate inherent motor vibrations. This construction ensures the HA-501 is an authentic hi-fi component that will last you for many years. Choose between a handsome black version and a brilliant silver version to match with any interior or design.

<b>Well-designed User Interface</b>
Another remarkable feature of the HA-501 is the user-friendly design. The firm-torqued volume control allows users to adjust the volume level with ease and precision while the toggle-type power switch assures ON/OFF operation at a glance. Auto-muting function protects your ears from unexpected loud sounds when switching between headphones with different levels of impedance.

<b>Professional grade Input/Output connectors</b>
On the rear panel, a pair of NEUTRIK brand XLR input connectors allow users to connect high-end components or professional audio equipment, while wider-pitch RCA pin jacks allow user to connect large-shaft RCA pin cables from other markets. A detachale type 3-polar power inlet socket is also avalable. On the front, a 3.5mm stereo mini-jack allows users to connect a portable music player such as an iPod, conveniently.

<b>Switchable Output Mode for flexibility</b>
Line output level from the rear panel can be swiched amongst "Fixed Level", "Variable Level (coupled with volume)" and "Off".
