Technical details
| Bluetooth range |
10 m |
| MP3 playback |
Y |
| CD player |
Y |
| Disc types supported |
CD-RW, CD-R, CD-DA |
| Signal-to-Noise Ratio (SNR) |
50 dB |
| AM preset stations |
20 |
| WMA bit rates |
8 - 320 Kbit/s |
| FM preset stations |
20 |
| MP3 bit rates |
8 - 320 Kbit/s |
| Supported radio bands |
AM, FM |
| Type |
Belt-drive audio turntable |
| Wow & flutter |
0.35% |
| Bluetooth profiles |
AVRCP, A2DP |
| Bluetooth |
Y |
| Motor type |
DC Servo Motor |
| Built-in amplifier |
Y |
| Cartridge type |
Ceramic stereo cartridge |
Ports & interfaces
| Line outputs (RCA) |
1 |
| AUX in |
Y |
Packaging content
| Batteries included |
Y |
| Handheld remote control |
Y |
| 45 rpm adapter |
Y |
Loudspeakers
| Impedance |
8 Ω |
| Bass reflex |
Y |
| Number of speakers |
2 |
| Tweeter diameter |
38.1 mm |
| Woofer diameter |
88.9 mm |
Weight & dimensions
| Satellite speaker dimensions (WxDxH) |
144 x 154 x 224 mm |
Power
| AC adapter frequency |
50 Hz |
| Power supply type |
AC |

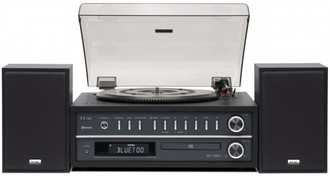

Turntable Speaker System, 33/45/78PPM, Bluetooth, CD Player, USB, MP3/WMA, AM/FM, Aux, 230V, 50Hz, Black
Supporting a hundred years of audio invention with playback, from 78rpm SP records and the latest Smartphone with Bluetooth® Wireless Technology.
<b>Bluetooth® Wireless Audio Streaming with Instant Pairing</b>
With selected smartphones, you can establish Bluetooth® wireless connection simply placing the smartphone on the top of the unit. If your smartphone is not compatible with Instant Pairing, you can establish Bluetooth® wireless connection via a conventional paring process.
<b>3-speed Turntable supports 78 rpm SP records</b>
An auto-return 3-speed turntable can play 33, 45 and 78 rpm records including 7” vinyl records. The factory-installed sapphire stylus which is designed for LP/EP records can be replaced with a diamond stylus (SPL-102, sold separately) which is exclusively designed for SP records.
<b>CD Player with MP3/WMA Playback</b>
The tray loading type CD player supports both MP3 and WMA files as well as conventional audio CD (CD-DA). Up to 32-track program play, repeat play and shuffle play are also supported.
<b>USB Port for MP3/WMA Playback</b>
An easy access USB port on the top deck allows users to play MP3/WMA files from a USB flash drive. As well as CD playback, up to 32-track program play, repeat play and shuffle play are supported. The USB port is covered with a rubber cap to prevent dust accumulation.
<b>PLL Synthesized AM/FM Stereo Tuner</b>
The MC-D800 also employs PLL synthesized AM/FM tuner with a 20 preset station memory on each frequency.
<b>Detached 2-way Speakers with Rear Bass-reflex port</b>
The MC-D800 comes with a pair of speakers that employ a 1.5” tweeter and a 3.5” woofer. The detached speaker design allows the MC-D800 to deliver 10W +10W of output power, thanks to isolated vibrations, playback will not be affected.
<b>Timer function brings music to a part of your day</b>
The timer function allows users to a set of On/Off timer which can be used as an alarm clock. Users can choose the desired source from CD, USB, FM, or AM, and the desired volume level to wake up every morning. Essential alarm clock function including a dimmable LC-display and sleep timer of up to 90 minutes are also included.
<b>Replacement Stylus Available for SP Records (Sold Separately)</b>
In order to prevent unnecessary attrition, or maintain accurate tracking on SP records, TEAC provides a replacement stylus tailored to the differing groove widths for SP records. (SPL-102)
