Techly HDMI Extender with IR on Cat. 6 Cable up to 60m IDATA EX-HL21D

Techly HDMI Extender with IR on Cat. 6 Cable up to 60m IDATA EX-HL21D

🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Power

Current 1 A
Power consumption (transmitter) (max) 3 mA
Power consumption (receiver) (max) 2 W
Operating voltage 5 V

Weight & dimensions

Receiver dimensions (WxDxH) 71.7 x 66.6 x 24.8 mm

Technical details

Cable types supported Cat6a, Cat6, Cat7
HDCP Y
Carrier frequency 60 kHz
Maximum transfer distance 60 m
Type AV transmitter & receiver

Packaging content

IR receiver included Y
IR blaster included Y

Ports & interfaces

RJ-45 input ports 1
RJ-45 output ports 1

Additionally

AC adapter bundled Y

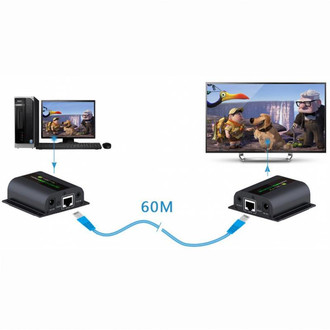

HDMI, Cat6/6A/7, IR, HDCP, FullHD, 60 m The HDMI extender kit converts the HDMI signal into the network signal and transmits the data over cable Cat. 6 with a resolution FullHD 1080p up to 60m.
The HDMI extender is able to support not only the HDMI signal transmission, but also supports the function of transmission IR with which people can easily control the affected devices from long range. Supports IR devices standard 20 / 60KHz.

<b>Technical specifications</b>
- HDMI signal: compatible with HDCP
- Resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
- Network Cables Supported: Cat. 6, 1080p up to 60 metr
- Supports Cat.6 / 6A and 7
- Signal IR: IR devices supports 20 ~ 60KHz
- Operating Temperature: 0 ℃ ~ 60 ℃
