Power
| Power consumption (transmitter) (max) |
3.5 W |
| Power consumption (receiver) (max) |
3 W |
| Operating voltage |
5 V |
Weight & dimensions
| Transmitter dimensions (WxDxH) |
96.8 x 94 x 23.7 mm |
| Receiver dimensions (WxDxH) |
96.8 x 94 x 23.7 mm |

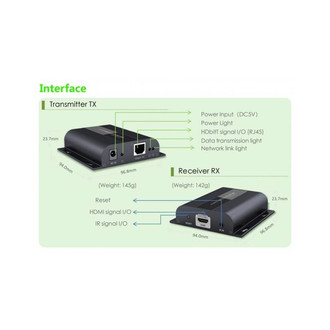

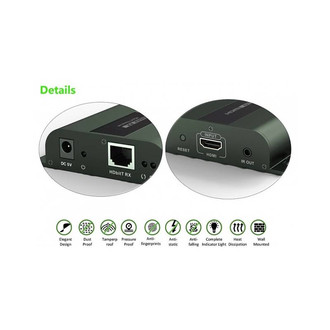

Ports & interfaces
| Remote (IR) input |
1 |
| Remote (IR) output |
1 |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| HDMI in |
1 |
| DC-in jack |
Y |
Technical details
| Bandwidth |
1 Gbit/s |
| Carrier frequency |
60 kHz |
| Maximum transfer distance |
120 m |
| Type |
AV transmitter & receiver |
| Cable types supported |
Cat5e, Cat6 |

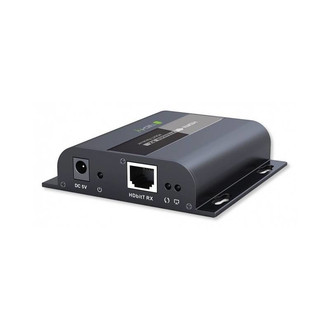

HDMI, 3D, 120m, UTP/STP Cat5E/6, 1000Mbps, DC5V 1A, 3.5W/3W, Black
The HDMI extender HDbitT offers all the benefits of the latest transmission technology - HDbitT, allowing you to extend the HDMI audio / video signal with a resolution of 1080p 60Hz up to 120m using a single network cable. It supports IR signal transmission, to control media playback of the source device from the location where the display is located.
<b>Technical specifications</b>
- Transmitter Kit and IR receiver with HDMI HDbitT
- Transmission protocol: HDbitT
- Supported resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
- Network cable: UTP / STP Cat5E / 6
- Transmission distance up to 120m transmission distance for 1080p 60Hz Full HD on a single CAT6 cable
- IR Signal: Supports IR devices 20-60KHz
- Operating Temperature: 0°C - 60°C
- Power supply DC5V / 1A
- TX consumption: 3.5W; RX: 3W
<b>Installation Requirements</b>
- HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc.)
- HDMI screens as SDTV, projector with HDMI port.
- Network cables: Network cables UTP / STP Cat5e / 6, that meet the standards EIA568B
- Transmission length: 80m CAT5 / CAT5E100m / CAT6 120m
<b>Connection</b>
- Point-to-point connection: up to 120 meters transmission distance through single CAT6 cable (with a high quality cable can reach up to 150 meters)
- Connection with Router: Using a router / repeater, you can reach unlimited extensions.

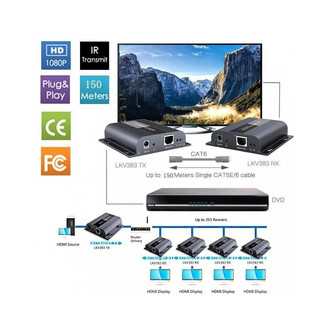

- Point-to-Multipoint Connection: Using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function.
Note: We recommend the use of a gigabit switch (1000Mbps) for the LAN transmission.
<b>Dimensions</b>
- Width: 96.8 mm
- Depth: 94 mm
- Height: 23.7 mm
<b>Certifications</b>
- EC
- FCC
- RoHS
- WEEE
<b>Package Contents</b>

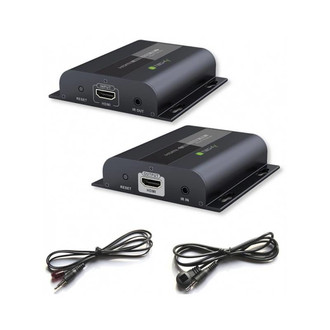

- 1x HDMI Transmitter EXTENDER TX
- 1x HDMI EXTENDER RX Receiver
- 2x Power Supply DC5V / 1A
- 1x extension cable IR Blaster
- 1x IR receiver extension cable
- 1x Instruction Manual
