Ethernet LAN features
Cabling technology |
10/100Base-T(X) |
Ethernet LAN interface type |
Fast Ethernet |
Ethernet LAN data rates |
10, 100 Mbit/s |
Wireless LAN features
Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
Top Wi-Fi standard |
IEEE 802.11n |
WLAN data transfer rate (max) |
150 Mbit/s |
Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Modulation |
16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
Maximum outdoor range |
130 m |
Other features
Mobile network connection |
N |
xDSL connection |
Y |
Bandwidth (second) |
2.4835 GHz |
Bandwidth (first) |
2.4 GHz |
Frequency range |
2.4 - 2.4835 GHz |
Rack mounting |
N |
Antenna
Antenna type |
internal |
Antenna gain level (max) |
2 dBi |
Antennas quantity |
1 |
Detachable antenna(s) |
Y |
Additionally
Ethernet LAN connection |
Y |
AC adapter bundled |
Y |
Ethernet LAN (RJ-45) ports quantity |
4 |

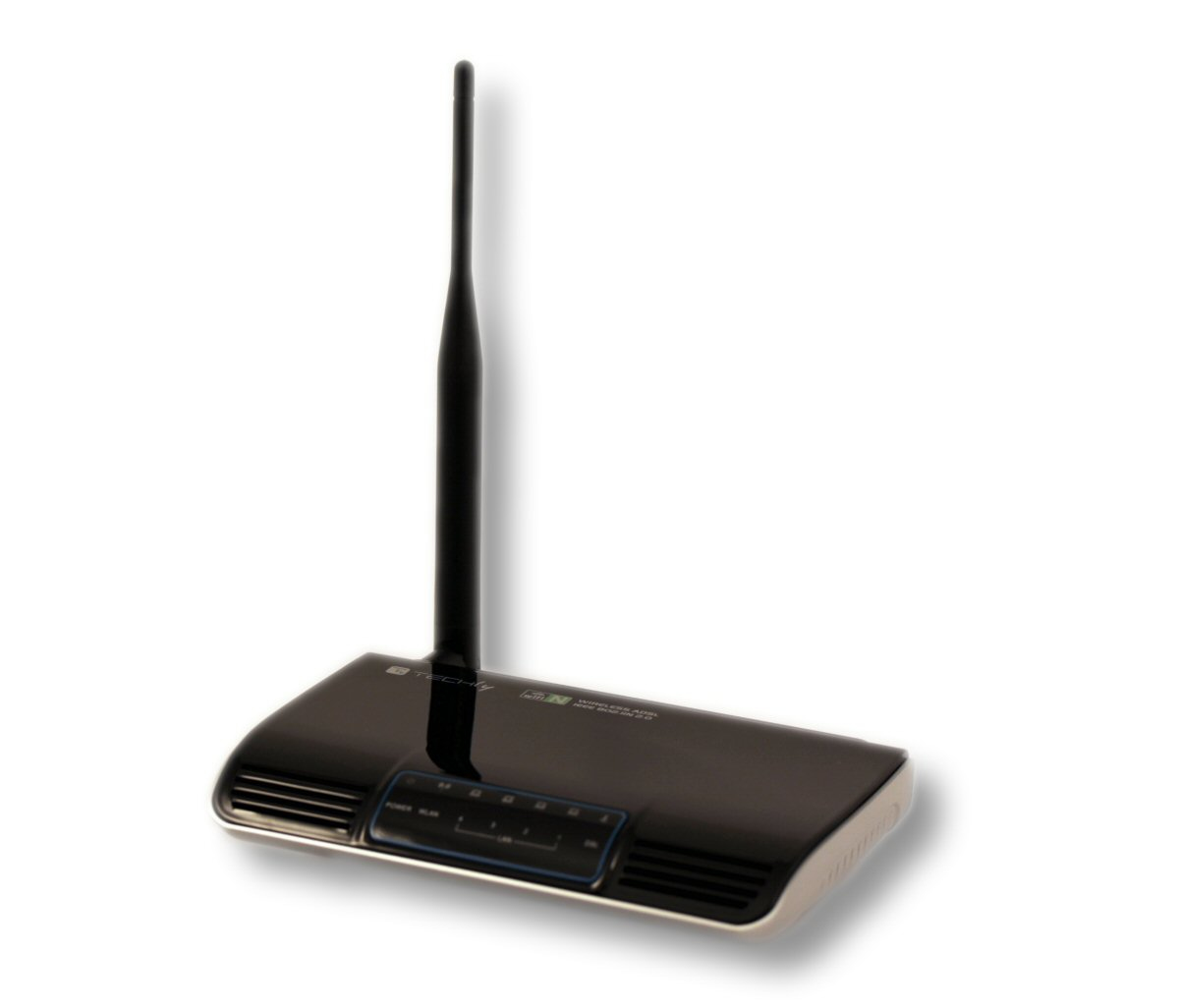

Techly I-WL-ADSL-150T. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: IEEE 802.11n, Wi-Fi standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Ethernet LAN interface type: Fast Ethernet, Cabling technology: 10/100Base-T(X). Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u. Antenna type: Internal. Security algorithms: WEP, WPA, WPA-TKIP, WPA2, WPA2-AES
