Technical details
| Output current |
6000 mA |
| Applicability |
Universal |
| USB connectivity |
Y |
| Over voltage protection |
Y |
| USB output current |
1 A |
Power
| Input voltage |
100-240 V |
| Adjustable output voltage |
Y |
| Input frequency |
50/60 Hz |
| Input current |
1.8 A |
| Output voltage note |
15 - 19.5V / 4.6 - 6A (15V / 6A, 16V / 5.6A, 18.5V / 4.8A, 19V / 4.7A, 19.5V / 4.6A) |
| Automatic output voltage adjustment |
Y |
| Output power |
90 W |
Performance
| Detachable power connectors |
Y |
| Power protection features |
Over voltage, Overload, Short circuit |
| Purpose |
Notebook |
| Power current type |
AC-to-DC |
| Power supply type |
Universal |

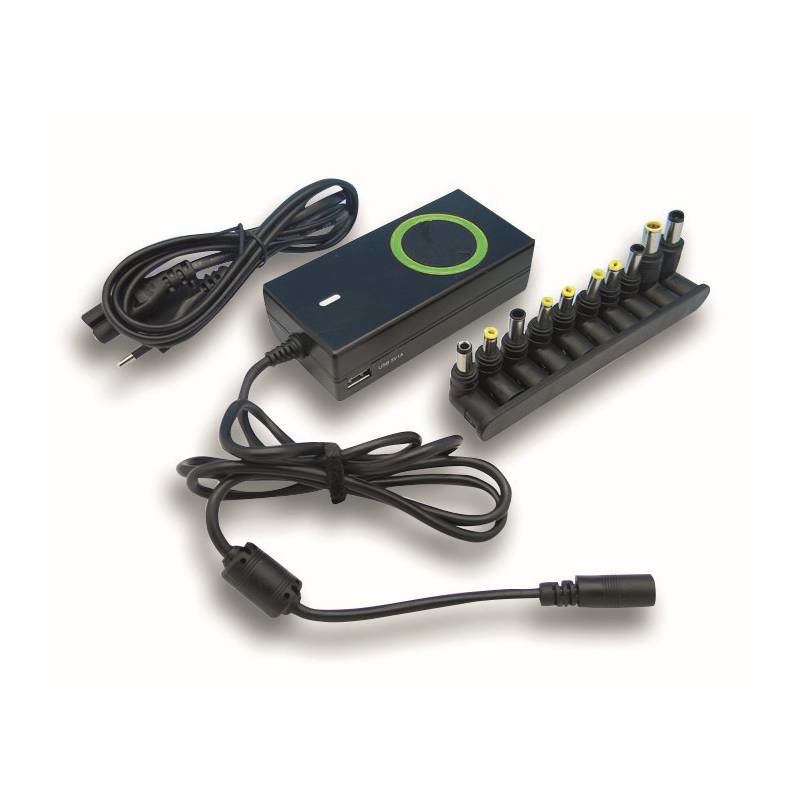

Universal Notebook Power Adapter, 90W, USB, European Plug
This universal adapter is designed for all laptops and mini-notebooks, but also for LCD and LED TV.
Output voltage
- 15 - 19.5V / 4.6 - 6A (15V / 6A, 16V / 5.6A, 18.5V / 4.8A, 19V / 4.7A, 19.5V / 4.6A)
Features
- Laptop Power Supply
- Black Colour
- Includes 12 DC plugs parts
- Power: 90W
- With USB port for additional devices 1A for charging
- Automatically selects the required voltage
- Operating Temperature: 0-40 ° C
- Storage temperature: -20 - 40 ° C
Technical specifications
- Input voltage: 100-240 V AC / 1.8A max
- Output voltage: 15-19.5 V DC
- Output Current: 4600-6000 mA
- Input Connector: European plug
Compatibility
- Compatible with: HP, Dell, Acer, Compaq, Lenovo, Fujitsu, Toshiba, Asus, IBM, Samsung, Sony, Delta, Liteon ..
Protections
- Short circuit
- Overload
- Overvoltage
Dimensions
- Width: 55 mm
- Height: 123 mm
- Depth: 33 mm
Certifications
- EC
- FCC
- RoHS
- WEEE
Package Contents
- Universal power supply
- 12 interchangeable plug
- Power cord
- User manual
