Ports & interfaces
| PCI Card form factor |
Full-height |
| Host interface |
PCIe |
| Internal |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Other features
| Ports quantity |
2 |
| Slot type |
PCI-e 8 x |
| Platform |
PC |
Additionally
| Wireless technologies |
Wired |

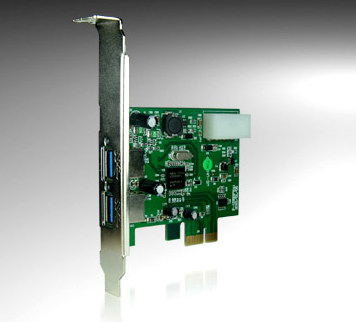

USB 3.0 PCI-e Card-302P
- PCI-e x1 Slot (for Desktop PC / Computer models)
- Two (2) Power LEDs
- NEC Chipset (built-in)
- Compatible with USB 3.0 and backwards with USB 2.0, 1.1, 1.0
- Supports 2 downstream ports for all speeds
- Each port provides DC 5V 1A via USB 3.0 connector
- USB ports are Hot Swapping compliant
- USB ports are Plug & Play compliant
- Fully compliant with USB 3.0 revision 1.0 specifications and INTEL xHCI rev. 0.96 specifications
- Supports USB data transfer rate of 5Gbps, 480Mbps, 12Mbps and 1.5Mbps
- Supports up to 127 USB devices connected to a single interface (requires additional USB Hubs to obtain this number)
