Performance
| Ethernet LAN data rates |
10, 100 Mbit/s |
| 2.4 GHz |
Y |
| Frequency band |
2.4, 5, 5.8 GHz |
| Number of users |
32 user(s) |
| Spread spectrum method |
DSSS |
| 5 GHz |
Y |
| VLAN support |
Y |
| Channels quantity |
8 |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Supported protocols |
SSH, HTTP, STTPS, SNMP (v1, v2, v3), SSH (v1.5, v2.0), NTP, DNS, DHCP, Telnet |
Power
| Input current |
1 A |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
230 / 12 DC V |
Antenna
| Integrated antenna |
N |
| Antennas quantity |
3 |
| Detachable antenna(s) |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
300 Mbit/s |

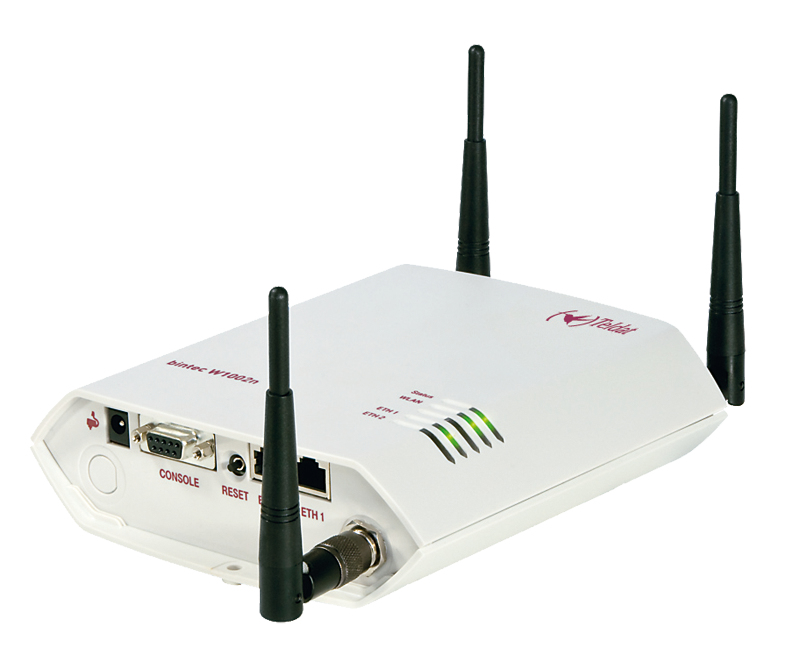

bintec W1002n Access Point for office campus and industry
<b>Access Point for office campus and industry</b>
The W1002n is an 11n access point with a dual-band radio module. It can function as a stand-alone access point, bridge, repeater, or client. In access point mode, it can be managed by the bintec WLAN Controller.
- Distinct increase of data rates for LAN-to-LAN coupling compared with conventional WLAN bridges
- PoE (Power over Ethernet) according to IEEE 802.3af
- Operation as fat AP or as controller based AP via bintec WLAN controller
With the IEEE 802.11n compatibility mode, the W1002n offers compatibility with all previous IEEE 802.11g or IEEE 802.11abgh clients and supports the mixed operation of clients according to IEEE 802.11n and clients according to IEEE 802.11b/g or IEEE 802.11a/h. This permits the trouble-free replacement of existing access points by the new W1002n without the necessity of exchanging the previous clients. Clients already supporting 802.11n will automatically benefit from the higher throughput and the better coverage of areas.
The operation of two W1002n devices in the bridge mode permits the setup of line-of-sight radio links. Here, again, the benefits of the IEEE 802.11n technology can be used by transferring two separate data streams. The application of dual polarization antennas permits easy installation. Dual polarization antennas consist of two antenna segments, which are polarized orthogonally to each other. They, therefore, provide 2 cable connections. This means that the W1002n transmits two separated partial streams from a to b, as defined by IEEE 802.11n. With this technology, more than triple the data rates can be reached compared to the previous technology. At a distance of 1000 m, net data rates of approximately 75 Mbps (TCP/IP) can be attained by using our dual polarization antennas.
The power supply is either performed by means of a highly efficient 230-V plug-in power supply or via PoE (Power over Ethernet) according to Standard IEEE 802.3af. In the case of operation via PoE, it suffices to use a default PoE injector or, for instance, a Teldat S128p switch with integrated PoE feeding. Expensive special PoE injectors are not required for the W1002n.
For the application on the medical sector, the W1002n has been granted admission according to EN60601-1-2, like its predecessor W1002. You can download the corresponding certificate in the download section, WLAN Products - Conformity Declarations.
<b>WLAN Controller</b>
Optimize your WLAN network by using a bintec WLAN controller. The bintec WLAN controller allows configuration of your customers WLAN network in lesser than 30 minutes ... and this without deeper WLAN know-how! The automatic RF management system relieves you the time killing search for free WLAN channels and selects the best channels for the system.
For smaller WLAN networks up to 6 APs bintec access points (W1002n, WI series) are able to take over the function of the WLAN controller by themself and work as quasi master APs. For networks with more than 6 up to 72 APs you will need a bintec R1202 as WLAN controller hardware. You are able to manage bigger WLANs with up to 150 AP by using a bintec RXL12x00 as WLAN controller hardware.
