Ports & interfaces
Remote (IR) output |
1 |
PC in (D-Sub) |
Y |
PC Audio in |
Y |
DVI port |
N |
Common interface Plus (CI+) |
Y |
Composite video in |
1 |
VGA (D-Sub) ports quantity |
1 |
RF ports quantity |
2 |
Headphone outputs |
1 |
USB 2.0 ports quantity |
2 |
Audio (L,R) in |
1 |
HDMI ports quantity |
2 |
Component video (YPbPr/YCbCr) in |
1 |
SCART ports quantity |
1 |
TV tuner
Auto channel search |
Y |
Digital signal format system |
DVB-T, DVB-S2 |
Display
Display diagonal |
24 " |
HD type |
Full HD |
Aspect ratio |
16:9 |
Response time |
12 ms |
Screen shape |
Flat screen |
Contrast ratio (typical) |
5000:1 |
Viewing angle, horizontal |
178 ° |
Viewing angle, vertical |
178 ° |
Display brightness |
300 cd/m² |
Display resolution |
1920 x 1080 pixels |
3D |
N |
Performance
Teletext function |
Y |
Extended PVR |
Y |
Video formats supported |
MPEG4 |
Parental control |
Y |
Smart TV
Timeshift |
Y |
Smart TV |
N |
Internet TV |
N |
Weight & dimensions
Weight with stand |
4600 g |
Depth |
54 mm |
Depth (with stand) |
175 mm |
Height (with stand) |
402 mm |
Width (with stand) |
582 mm |
Width |
582 mm |
Height |
362 mm |
Audio
RMS rated power |
6 W |
Number of speakers |
2 |
Built-in speaker(s) |
Y |
Management features
On Screen Display (OSD) |
Y |
On/Off timer |
Y |
Number of OSD languages |
6 |
Power
Power consumption (standby) |
0.5 W |
Ergonomics
VESA mounting interfaces |
100 x 100 mm |
Additionally
Energy efficiency compliance |
Unspecified |
Colour of product |
Black |
Display diagonal |
61 cm |
Ethernet LAN connection |
N |

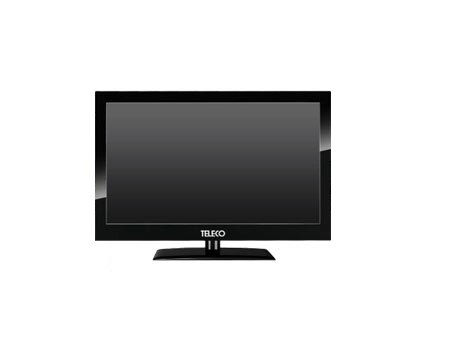

60.96 cm (24 ") , 1920 x 1080, 12ms, DVB-T/S2, CI+, 2x 3W, HDMI, USB 2.0, 230V AC
All Terrestrial and Satellite TV programs via a single TV set with no need for external Decoders
Twin HD Board
- 1 for DVB Satellite - S2
- 1 for DVB-T MPEG 4 Terrestrial
- Twin CI+ port for HD and SD CAM Modules for both Satellite and Terrestrial encrypted programs
- Twin USB 2.0 port for both Satellite and broadcast Recording and Playing ( PVR )
- 4000 SD and HD Satellite TV and Radio Channels
- 2000 SD and HD Terrestrial TV and Radio Channels
- All the models are equipped with a Multifunction IR (infrared) sensor for the user to control both the TV and the automatic Flat Sat Elegance S and Flat Sat Komfort S Satellite Antenna by using a single remote control
- Time-Shift function in all the models, enabling to temporarily stop a program and then to resume watching it later on, starting from the exact point of interruption. This is possible by using the USB ports provided on the TV to record and replay programs by plugging a suitable flash drive into the USB port.
- Anti-reflection screens for quality viewing also in high-brightness environments
- Wide vertical and horizontal viewing angle
