Wireless LAN features
Top Wi-Fi standard |
IEEE 802.11n |
Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
WLAN data transfer rate (max) |
150 Mbit/s |
Antenna
Antenna type |
Internal |
Antennas quantity |
1 |
Other features
USB ports quantity |
1 |
xDSL connection |
N |
Frequency band |
2.4 GHz |
Rack mounting |
N |
Bandwidth (first) |
2.4 GHz |
Mobile network connection |
N |
Ethernet LAN features
Ethernet LAN interface type |
Fast Ethernet |
Ethernet LAN data rates |
10, 100 Mbit/s |
Security
MAC address filtering |
Y |
System event log |
Y |
Power
Power over Ethernet (PoE) |
N |
Additionally
Ethernet LAN (RJ-45) ports quantity |
1 |
Ethernet LAN connection |
Y |
Filtering |
MAC/IP/Domain |

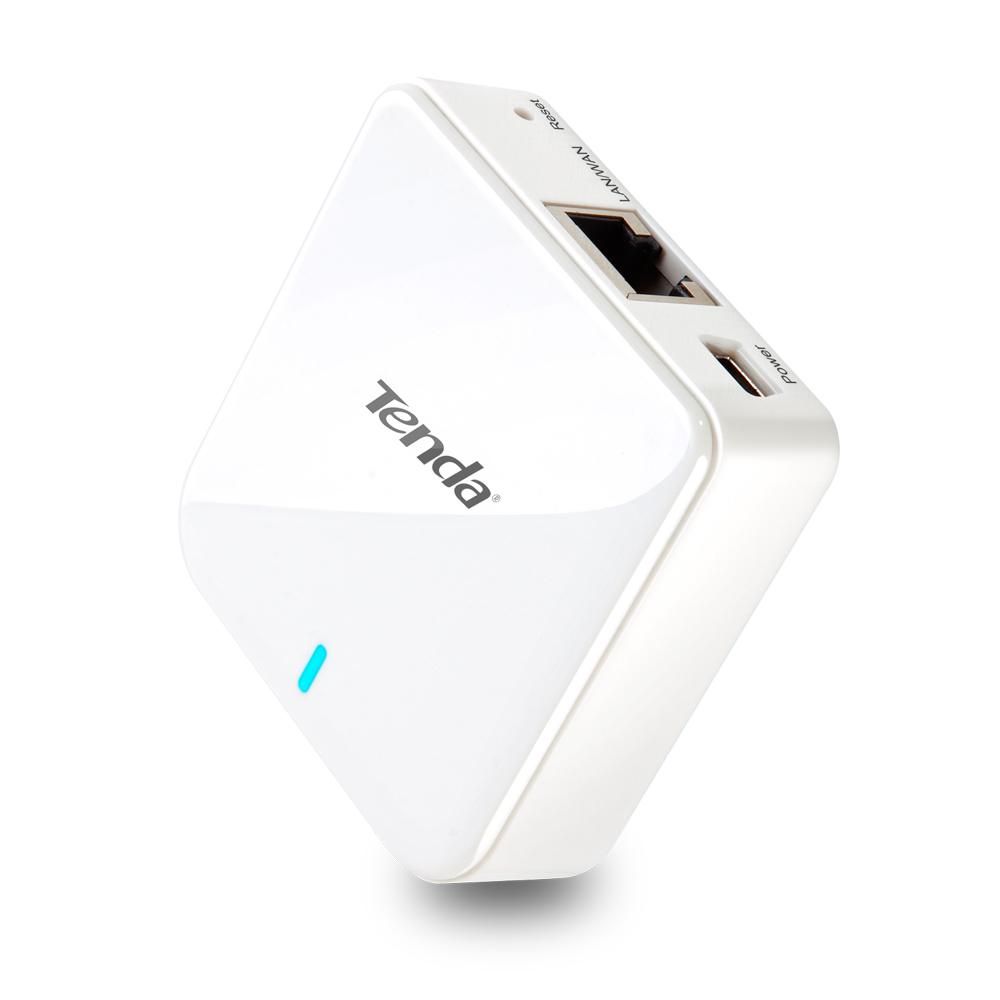

Wireless N150 Mini AP/Router, 1 x 10/100M LAN/WAN, Power over USB
The A6 Wireless N150 Mini Pocket Router is a portable and convenient wireless solution for traveling business people delivering 802.11n wireless connectivity with a maximum wireless signal rate of up to 150Mbps. The device is small in size yet huge in functionality. It supports five working modes, including: Access Point mode by default to create a wireless network; Wireless Router mode to share a wireless connection; Wireless Client mode to connect an existing wireless network; WISP mode to extend hotspot coverage such as at a cafe, an airport, or from ISP; and Universal Repeater mode to extend an existing wireless connection. Compact and portability design, the A6 is ideal for people who travel on the road for use in conference rooms, hotel rooms, offices, even at hotspots.
The A6 is small enough to put it into your pocket and take it on the road. It offers you convenience to create/share wireless connection while you are in hotel room, conference room or even at a hotspot.
Other than traditional power supply by plugging power adapter, the A6 also provides power over USB for mobility purpose. Thus, it enables users to create a wireless connection at places even where power outlets are not available.
When you're in a room where a single Ethernet port is provided, just connect the A6 to it using a cable, and a wireless network is created as the device is preset to AP mode. Now multiple users can connect to Internet for sharing.
