Antenna
| Antennas quantity |
3 |
| Antenna connector type |
RP-SMA |
| Antenna gain level (max) |
5 dBi |
Performance
| Ethernet LAN data rates |
10, 100 Mbit/s |
| 2.4 GHz |
Y |
| Maximum indoor range |
50 m |
| Firmware upgradeable |
Y |
| Reset button |
Y |
| Frequency band |
2.4 - 2.483 GHz |
| Number of users |
20 user(s) |
| 5 GHz |
N |
| Transmitting power |
23 dBmW |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Supported network protocols |
http/https |
Power
| Power over Ethernet (PoE) |
Y |
Security
| Number of SSID support |
8 |
| SSID Broadcast on/off |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
300 Mbit/s |
| AC adapter bundled |
Y |
IEEE 802.11n/g/b, 50m, 2.4 - 2.483GHz, 300/54/11 Mbps, DC 12V, 1A, 23dbm
<b>What It Does</b>

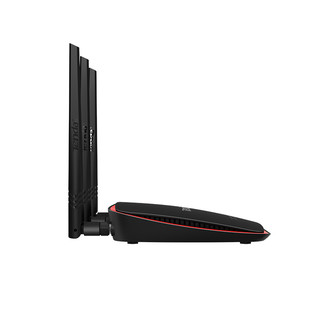

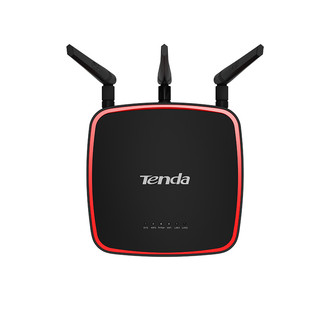

AP5 is designed to boost the range of your existing WiFi and creates a stronger signals in a hard to reach areas for game consoles, printers, smart phone, tablet. Power over ethernet supported and wall-mount design make it flexible to deploy in any location. The AP features with multi operation modes like Universal Repeater, Client(Station), WISP to adapt various application scenarios. It is a ideal Wi-Fi booster for large houses, villas,eatery, large stores etc.
- One Button to boost Wi-Fi range for ADSL router.
- 300Mbps wireless transmission rate brings smooth wireless experience.
- Multiple operating modes include AP/Univesal Repeater/WISP/Client/Client+AP.
- PoE power supply supported make it flexible to deploy.
<b>One Button to boost Wi-Fi Range</b>
AP5 features Range Extender Button that allows users to boost existing Wi-Fi Range simply by pressing the "Range Extender" button.
<b>Flexible deployment</b>
Wall-Mount design and power over ethernet cable supported make it flexible to deploy in place without power outlet such as garage,warehouse etc.
<b>Multi Operating Modes for Various Scenarios</b>
Multi operating modes including AP,Universal Repeater,WISP(Client+Router), Station(client) help you to boost WiFi range in various scenarios such as large house,villa, eatery,stores, community network.
<b>Excellent Wi-Fi Coverage</b>
Adopt of high power technology and three high gain antennas for better Wi-Fi signal and maximum coverage.
<b>Easy to Manage With AP Controller</b>
AP5 can be managed by the AP controller AC500 from Tenda. When you deploy multi APs in networks, you can configure SSID(Wireless network name), Channel, Security Key, Output power etc option through AC500 in a single location.
