Ethernet LAN features
Cabling technology |
10/100/1000Base-T(X) |
Ethernet LAN interface type |
Gigabit Ethernet |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Protocols
DMZ support |
Y |
DHCP client |
Y |
DHCP server |
Y |
Wireless LAN features
Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
Top Wi-Fi standard |
IEEE 802.11n |
WLAN data transfer rate (max) |
900 Mbit/s |
Wi-Fi standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Other features
Mobile network connection |
N |
xDSL connection |
N |
Bandwidth (second) |
5 GHz |
Bandwidth (first) |
2.4 GHz |
Input current |
0.3 A |
USB version |
2.0 |
USB ports quantity |
1 |
Antenna
Antenna type |
External |
Antenna gain level (max) |
5 dBi |
Antennas quantity |
3 |
Management features
Reset button |
Y |
Web-based management |
Y |
Additionally
Ethernet LAN connection |
Y |
On/Off switch |
Y |
AC adapter bundled |
Y |
Ethernet LAN (RJ-45) ports quantity |
5 |
802.11 b/g/n, Dual-band, 300 Mbps, 2.4 GHz, 5GHz, White

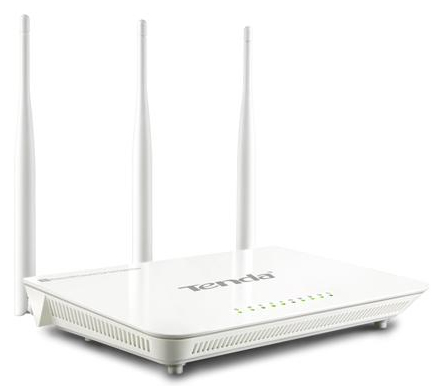

The Tenda N80 Concurrent Dual Band Wireless N900 Gigabit Router delivers incredible performance and coverage range. It increases Wi-Fi speed for both 5 GHz and 2.4 GHz transmission by 50% up to 900Mbps that makes it ideal for bandwidth demanding tasks such as 3D HD video steaming, multiplayer gaming, USB hard drive file sharing, and USB connected printer sharing. Also, four gigabit Ethernet ports offer blazing fast wired connectivity, 10X faster than standard Ethernet. With full 3x3 MIMO technology, the N80 is perfect for larger, multi-level homes and buildings with signal range that reaches virtually any area. What's more, whether you're a tech-savvy enthusiast or a first-time user, the N80 also provides an exceptionally easy and intuitive utility interface, which allows you to make your network installed and running out of box.
- Wireless N900 Concurrent Dual Band Gigabit Router
- Combined speed up to 900Mbps (450+450Mbps) over 2.4GHz &5 GHz
- Streaming and lag-free HD media experience
- Easy security setup at a push of the WPS button
- USB port for storage or printing sharing
With full 3x3 MIMO and dual band technology, the N80 provides a wireless operation range up to eight times farther than the ordinary wireless n devices, reduces dead spot, and avoid signal interference, enabling you to enjoy wireless connectivity throughout your home.
The N80 uses dual band technology to support 2.4GHz & 5GHz wireless signals at the same time. This allows you to check e-mail and browse the Internet using the 2.4GHz band while simultaneously streaming High-Definition (HD) movies and other media on the 5GHz band. Dual band technology also helps to avoid network interferences and double bandwidth for faster and more stable wireless transmission.
With a USB 2.0 port, users within the local network can easily share files and media from a USB storage device attached to the router. Also, by connecting a print server to the device, you can print any files or photos from your computer wirelessly.
The device supports multiple SSIDs which enable you to create different wireless networks with different access right. So you can assign a particular network (SSID) for your visiting guests while restricting their access to your Intranet, thus protect your data privacy and security.
Supporting IPTV feature, the N80 enables you to enjoy online videos on your TV set via a set-top box while surfing Internet and other online activities simultaneously.
With four Gigabit Ethernet ports, it provides 10 times of 10/100 device for streaming media, big files transfer and gaming.
