Other features
| Rack mounting |
N |
| USB ports quantity |
1 |
| xDSL connection |
N |
| USB version |
2.0 |
| Frequency range |
2.4 - 5 GHz |
| Input current |
0.3 A |
| Frequency band |
2.4 & 5 GHz |
| Mobile network connection |
N |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| WLAN data transfer rate (max) |
450 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
Antenna
| Antenna type |
External |
| Antennas quantity |
2 |
| Antenna gain level (max) |
5 dBi |
Ethernet LAN features
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| DMZ support |
Y |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Universal Plug and Play (UPnP) |
Y |
Power
| Power over Ethernet (PoE) |
N |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Ethernet LAN connection |
Y |
| Filtering |
Client/Website/MAC |
Wireless N900 Concurrent Dual-band Gigabit Router, 450+450Mbps, 3 x 10/100/1000M LAN, 1 x 10/100/1000M IPTV, 1 x USB 2.0

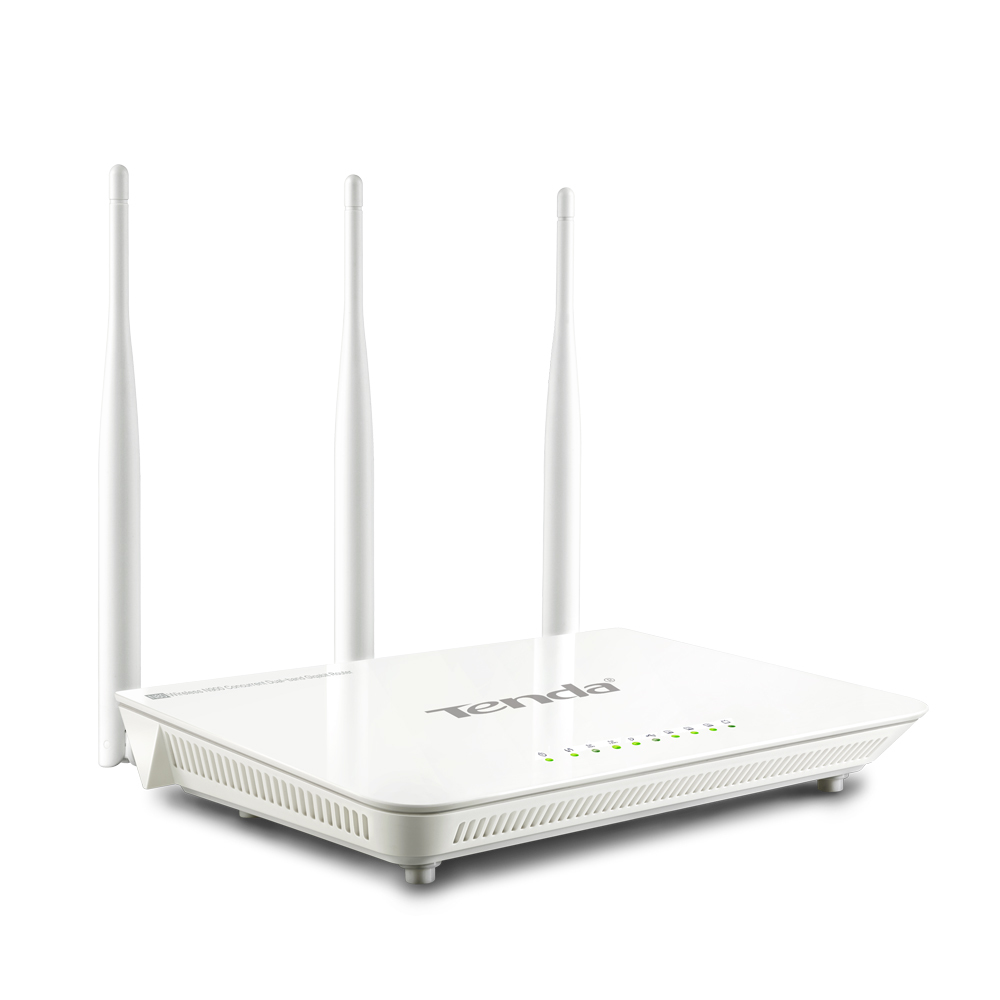

The Tenda N80 Concurrent Dual Band Wireless N900 Gigabit Router delivers incredible performance and coverage range. It increases Wi-Fi speed for both 5 GHz and 2.4 GHz transmission by 50% up to 900Mbps that makes it ideal for bandwidth demanding tasks such as 3D HD video steaming, multiplayer gaming, USB hard drive file sharing, and USB connected printer sharing. Also, four gigabit Ethernet ports offer blazing fast wired connectivity, 10X faster than standard Ethernet. With full 3x3 MIMO technology, the N80 is perfect for larger, multi-level homes and buildings with signal range that reaches virtually any area. What's more, whether you're a tech-savvy enthusiast or a first-time user, the N80 also provides an exceptionally easy and intuitive utility interface, which allows you to make your network installed and running out of box.
With full 3x3 MIMO and dual band technology, the N80 provides a wireless operation range up to eight times farther than the ordinary wireless n devices, reduces dead spot, and avoid signal interference, enabling you to enjoy wireless connectivity throughout your home.
The N80 uses dual band technology to support 2.4GHz & 5GHz wireless signals at the same time. This allows you to check e-mail and browse the Internet using the 2.4GHz band while simultaneously streaming High-Definition (HD) movies and other media on the 5GHz band. Dual band technology also helps to avoid network interferences and double bandwidth for faster and more stable wireless transmission.
With a USB 2.0 port, users within the local network can easily share files and media from a USB storage device attached to the router. Also, by connecting a print server to the device, you can print any files or photos from your computer wirelessly.
The device supports multiple SSIDs which enable you to create different wireless networks with different access right. So you can assign a particular network (SSID) for your visiting guests while restricting their access to your Intranet, thus protect your data privacy and security.
Supporting IPTV feature, the N80 enables you to enjoy online videos on your TV set via a set-top box while surfing Internet and other online activities simultaneously.
