Performance
| Channel bandwidth |
35 MHz |
| Transmitting power |
1 dBmW |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi data rate (max) |
433 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Reset button |
Y |
| Built-in processor |
Y |
| Certification |
FCC/CE/RoHS |
| Web-based management |
Y |
| Frequency band |
5 GHz |
Antenna
| Integrated antenna |
Y |
| Antenna type |
Directional |
| Antenna gain level (max) |
16 dBi |
| Antennas quantity |
1 |
Power
| Input voltage |
24 V |
| Power over Ethernet (PoE) |
Y |
| Power consumption (max) |
9 W |
| Input current |
0.5 A |
Design
| Placement |
Wall |
| Internal |
N |
| LED indicators |
Status |
| International Protection (IP) code |
IP67 |
Security
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Weight & dimensions
| Depth |
67.5 mm |
| Width |
94.9 mm |
| Height |
270 mm |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Operational conditions
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
Additionally
| Colour of product |
White |
| Transfer rate (Mbps) |
433 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
-20 - 55 °C |
802.11ac/n/a, 433Mbps, 5GHz, 16dbi, 9W, IP64
Main Features
- 5GHz 11AC 433Mbps
- IP64 waterproof enclosure
- 16dbi directional antenna
- AP,Station,WISP etc operating mode supported
- Up to 60 meters of flexible deployment with included PoE Injector
What it does

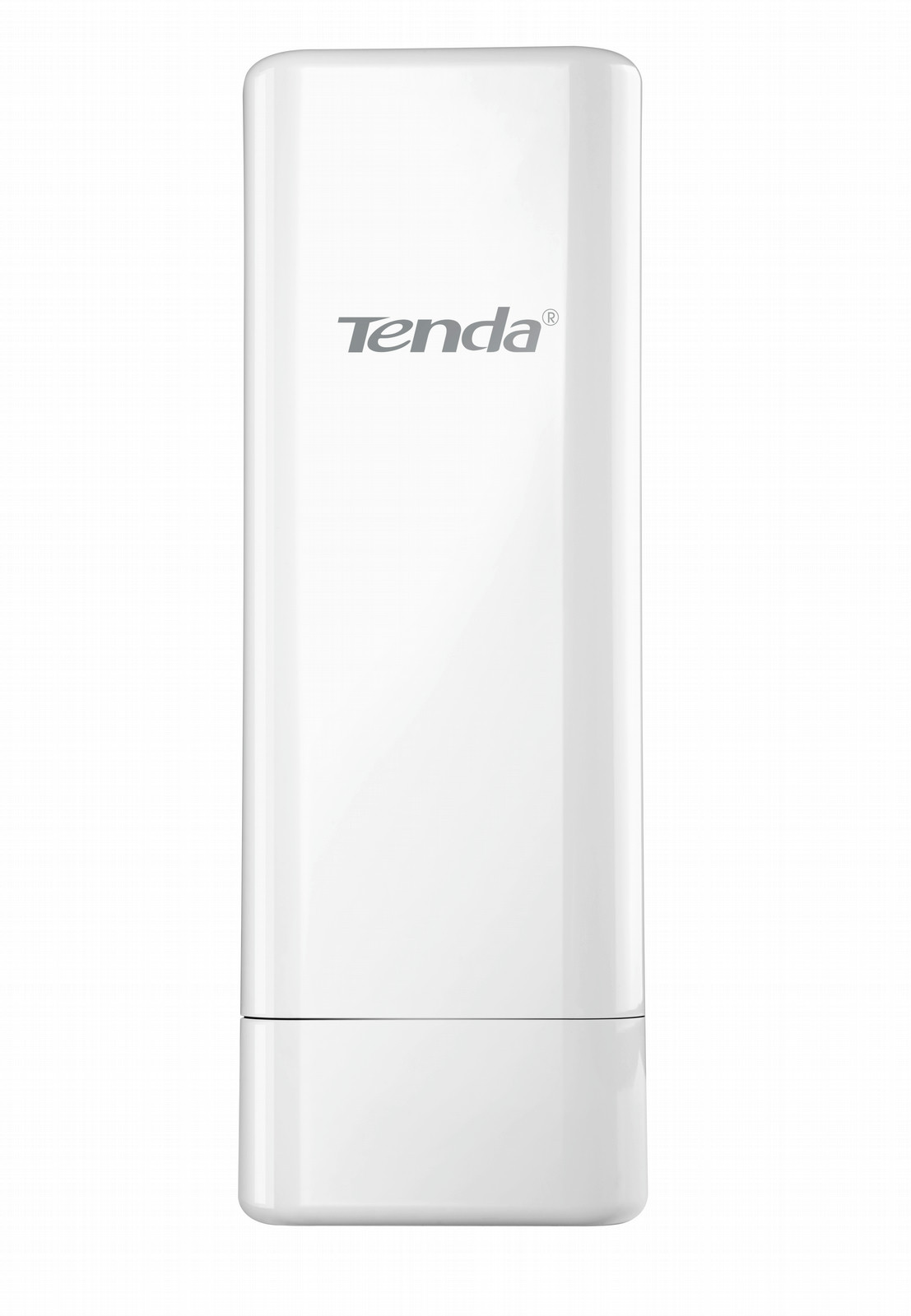

O6 5GHz 433Mbps outdoor Point to Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with an external power amplifier and a built-in 16dBi directional antenna to provide an efficient way to pick up and maintains a stable signal for a wireless network connection range up to 10 kilometers.
5GHz 11AC 433Mbps
O6 adopts of 11AC technology and gigabit ethernet port to boost the throughput performance on the wireless connection.
10km+ Wireless Data Transmission
O6 is specially designed for outdoor long range point to point application scenarios. Adopt of external power amplifier and 16dBi antenna to achieve 10km+ wireless data transmission range.
Bridge two device at a push of button
O6 comes with an operating mode switch, you can switch the device to work as AP mode or Station mode without login to web UI. When one works as AP mode and another works as Station(Client) mode, you can bridge two devices together at a push of Bridge/RST button.
Smart Signal Indicator LED
3 signal LED Lights represent the currently signal strength that O6 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.
Advanced Antenna System
O6 adopts of specific antenna array and metal reflector to deliver higher gain and optimized transmission quality.
Professional Outdoor Design
Equipped with IP64 waterproof enclouse and 6kv lightning protection capability, O6 can work in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment
Multiple Application Scenarios
Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.
WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.
P2MP Link
Link multi AP in a network, all the associated client can communicate with each other.
Easy to Manage
O6 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer--CPE Assistant.
