Packaging content
| Cables included |
LAN (RJ-45) |
| Quantity per pack |
2 pc(s) |
| Quick installation guide |
Y |
Performance
| Frequency range |
2 - 86 MHz |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Built-in power socket |
N |
| PowerLine standard |
HomePlug AV2 |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Wi-Fi |
N |
| Modulation |
OFDM |
| Power plug |
Type E / F |
Power
| Power consumption (typical) |
3.2 W |
| Current |
0.1 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100-240 V |
Operational conditions
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
Weight & dimensions
| Depth |
32 mm |
| Width |
60 mm |
| Height |
82 mm |
Design
| LED indicators |
LAN, Power |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
Additionally
| Colour of product |
White |
| Transfer rate (Mbps) |
1000 Mbit/s |
| Packaging type |
Box |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 40 °C |

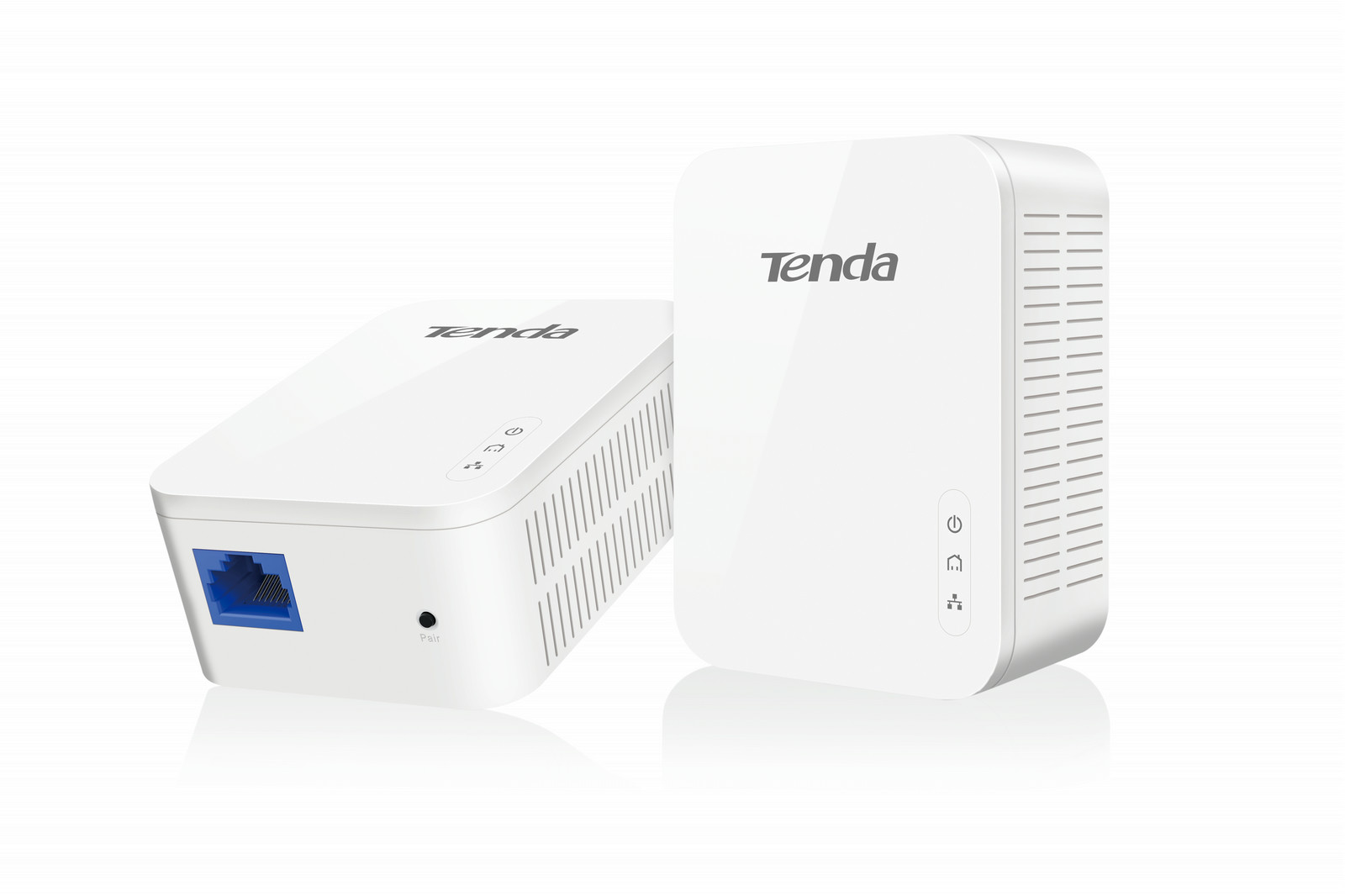

1000Mbps, 2-86MHz, 3.2W, Pack of 2
Full Gigabit Speeds For UHD Streaming
With advanced HomePlug AV2 technology, PH3 provides you with stable, high-speed data transfer rates of up to 1000Mbps on the powerline, and integration Gigabit Ethernet ports for wired devices bring you full Gigabit network; Perfect support 4K HD video smooth online play, At the same whether it is a multimedia player, online games, PH3 can provide fast Internet experience
Accessible wall, Internet signal transfer while the powerline exist
Powerline technology allows existing wires become vector transmission of multimedia and data flow，you can access to the internet where the socket exist，easy to get home, office network expansion and extension
Election materials, safe and reliable
Rigorous work, excellent choice of materials is PH3 transmission stable, reliable and durable basis，effective transmission distance up to 300 meters
- Broadcom Gigabit Powerline chips
- V0 class fire retardant housing
- Innovative board design process
Plug and play, easy networking
The factory default pairing,plug in the socket to finish the networking automatically,no need to set, saving time
Intelligent power-saving, environmental protection
PH3 Low-power circuit design, full load power consumption less than 3.2W
also built the latest intelligent detection function, when the device connected to it is turned off or standby mode, the power will automatically switch from normal mode to 0.36W power saving mode, you can save up to 88% of power consumption
